European
PlanTransitional
The "Bennett"
Overview
3–5
Bedrooms
2.5–4
Bathrooms
2,500
Heated sq. ft.
3-car
Garage
1
Story
3–5 bedrooms, 2 to 3 full + 1 to 2 half baths, 3-car garage.
Primary bedroom: main floor. Exterior as rendered: white exterior: white or painted brick, board and batten, metal roofing, natural wood accents, black windows. Any plan can be built with the materials you choose.
About this home
Built on 2,500 heated square feet, the single-story Transitional footprint keeps the primary suite convenient while framing the home around a central gathering zone. The plan includes 3+ bedrooms and 2+ full baths and 1 half bath, plus a 3-car attached garage. The footprint measures roughly 65' 0" wide by 82' 0" deep, with 10' ceilings on the main level.
Day to day, the plan reads naturally: the kitchen anchors the main floor, and the bedrooms pull back from the busier living zones. Outdoor living extends the home with a 433 sq. ft. wraparound porch, a 247 sq. ft. patio, and a 247 sq. ft. covered patio. Construction specs call for a slab foundation, a primary roof pitch of 12 on 12, and 2x6 exterior walls. Like every HRP plan, this one is fully customizable to your homesite and personal taste: exterior materials, interior finishes, and layout tweaks included.
Floor plans

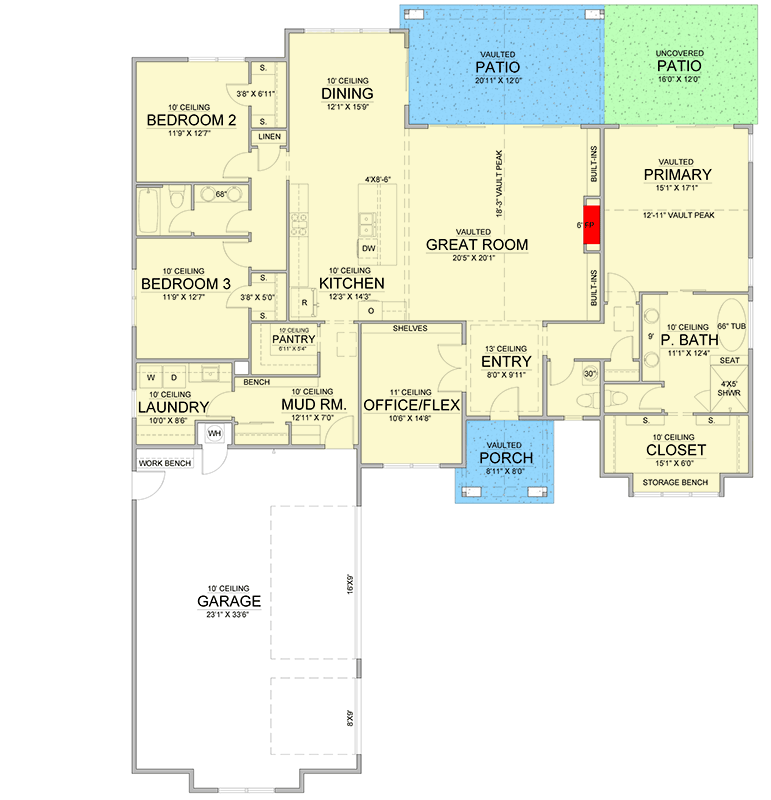

Floor plan drawing 1
Bennett

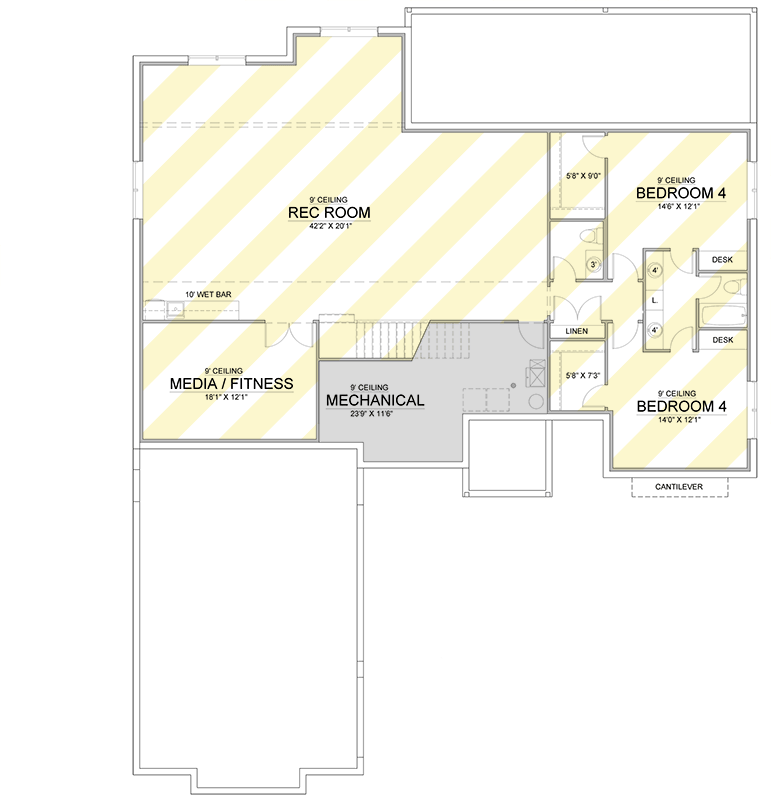

Floor plan drawing 2
Bennett

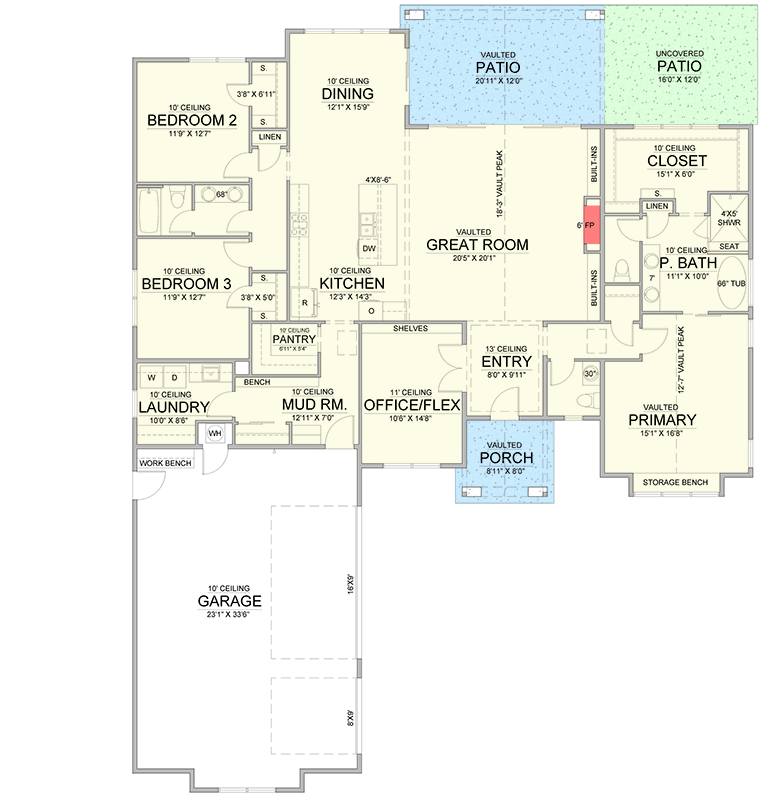

Floor plan drawing 3
Bennett

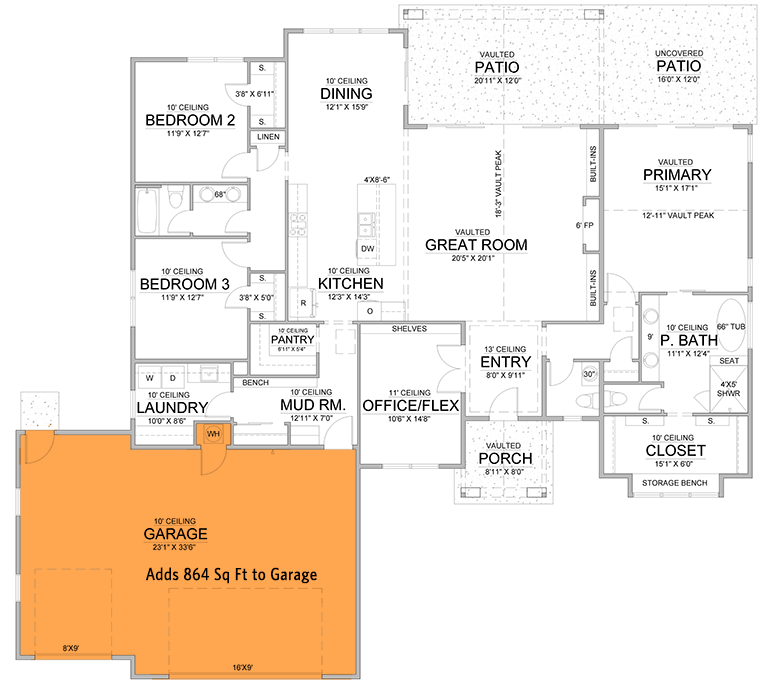

Floor plan drawing 4
Bennett

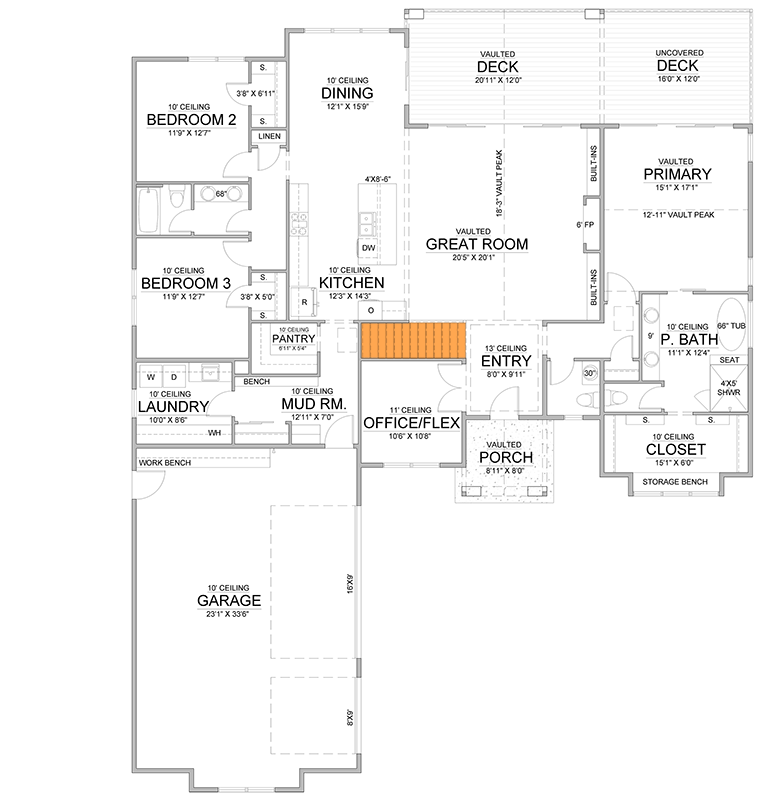

Floor plan drawing 5
Bennett
Elevations

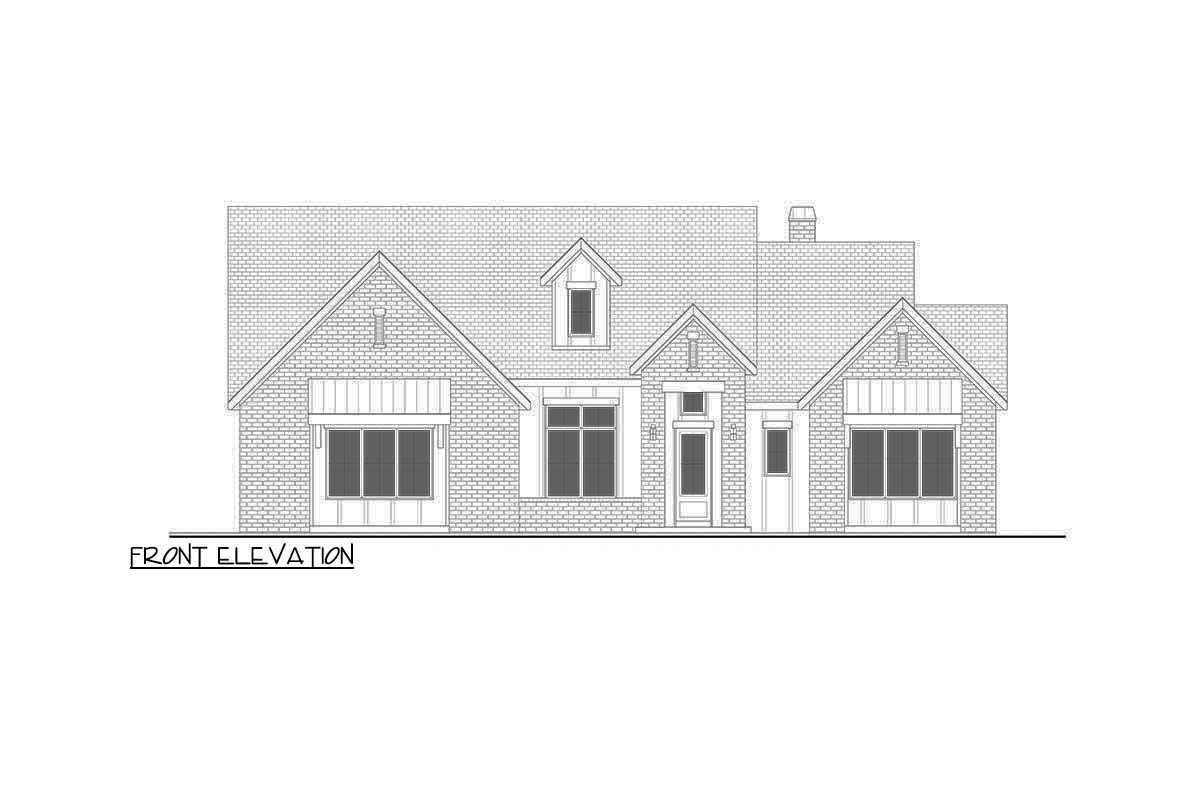

Elevation drawing 1
From the plan set

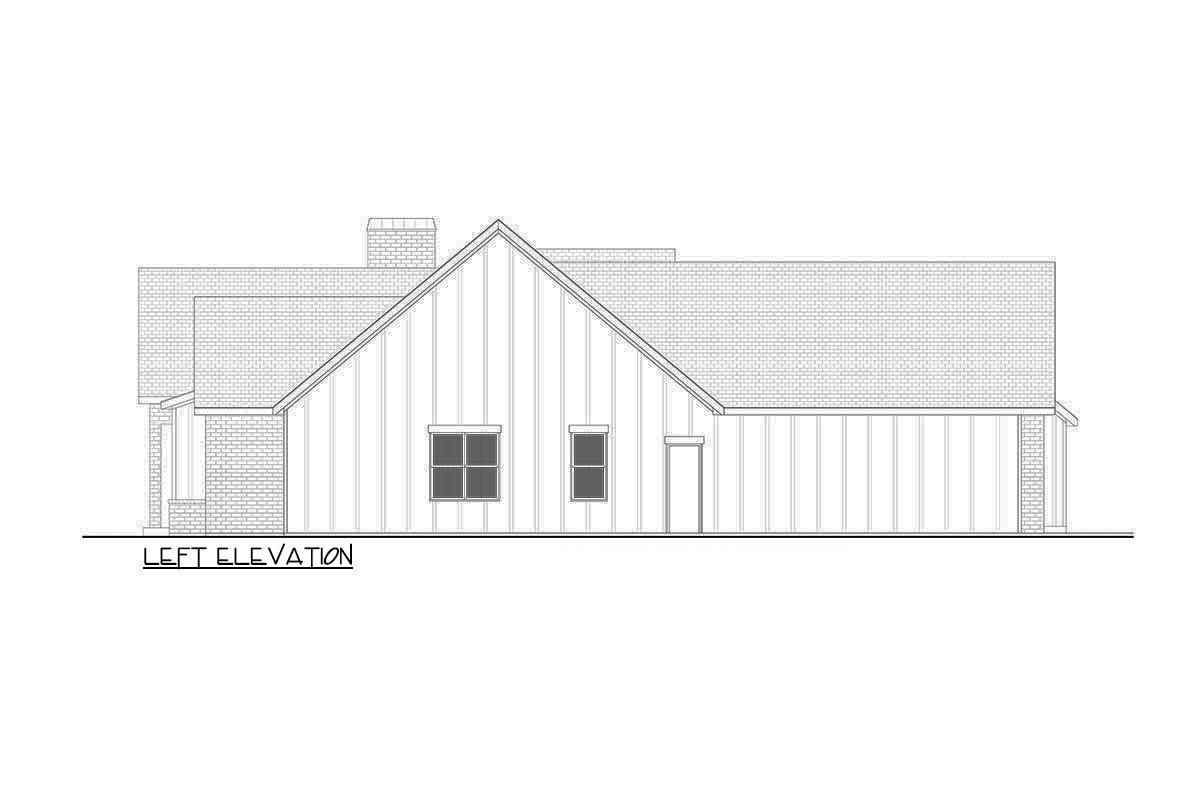

Elevation drawing 2
From the plan set

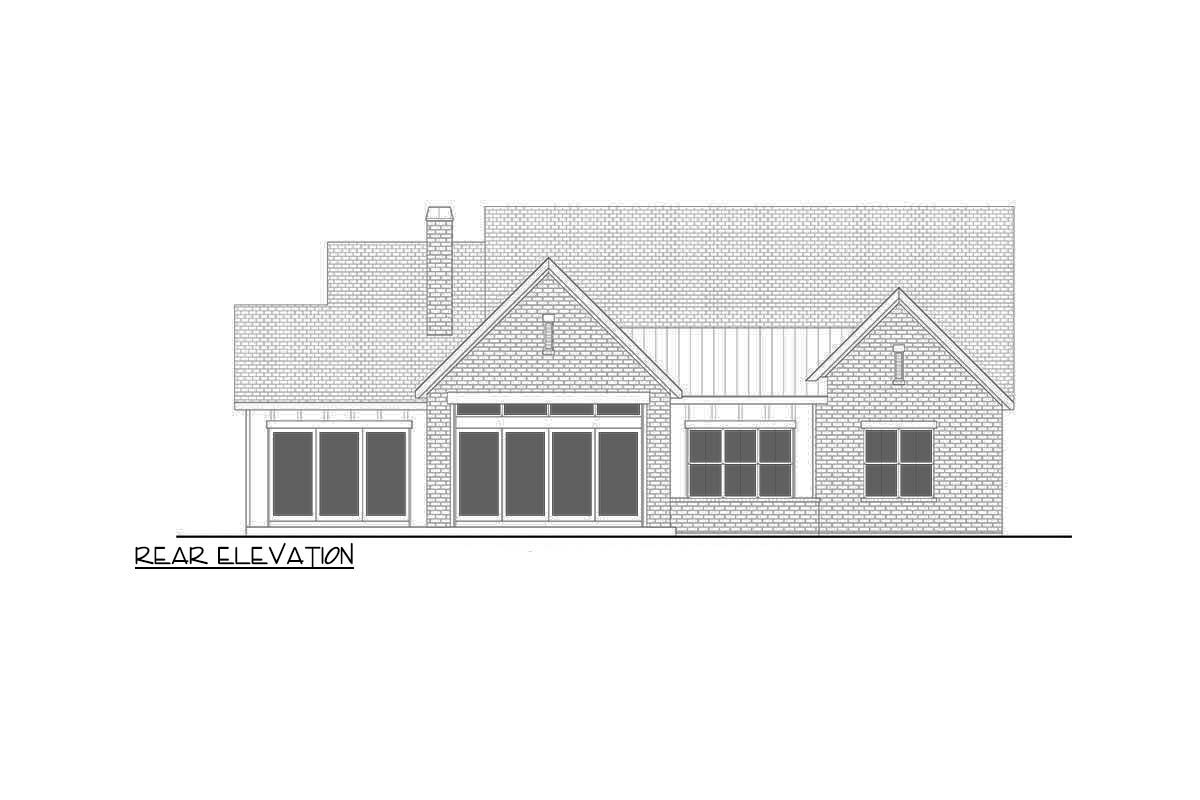

Elevation drawing 3
From the plan set

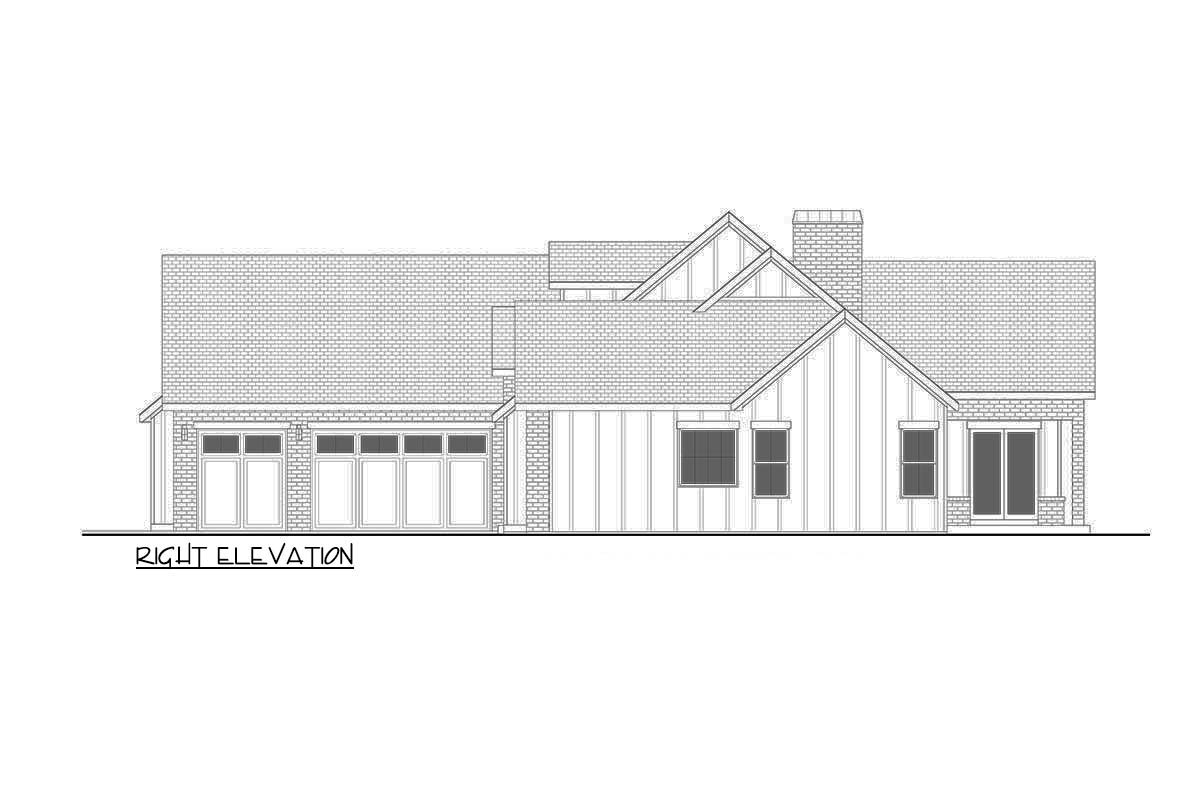

Elevation drawing 4
From the plan set

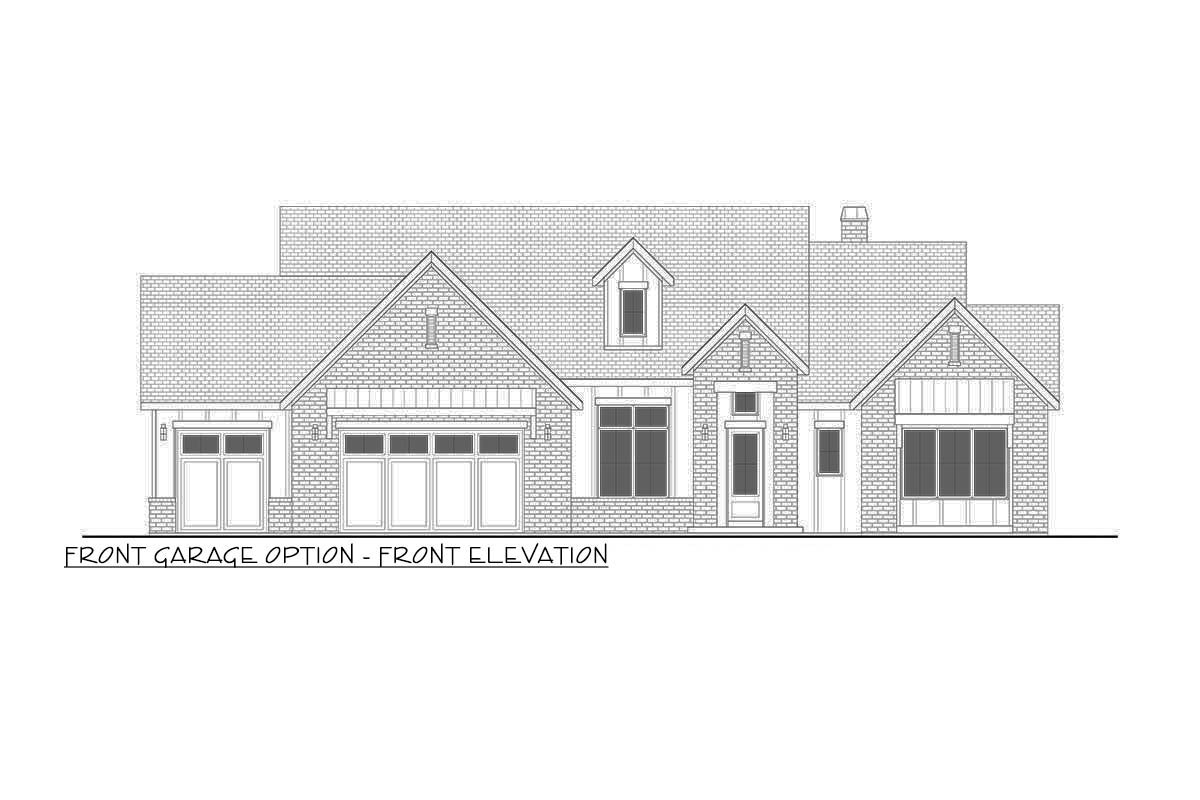

Elevation drawing 5
From the plan set

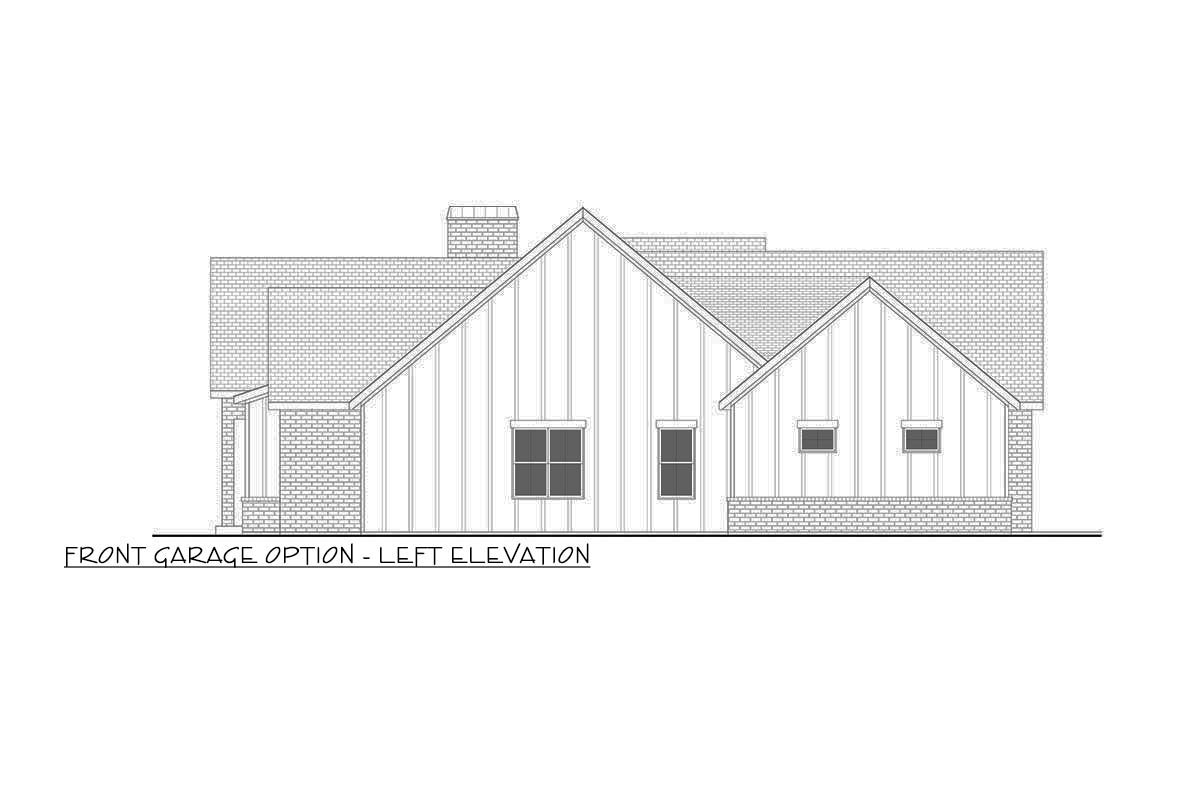

Elevation drawing 6
From the plan set

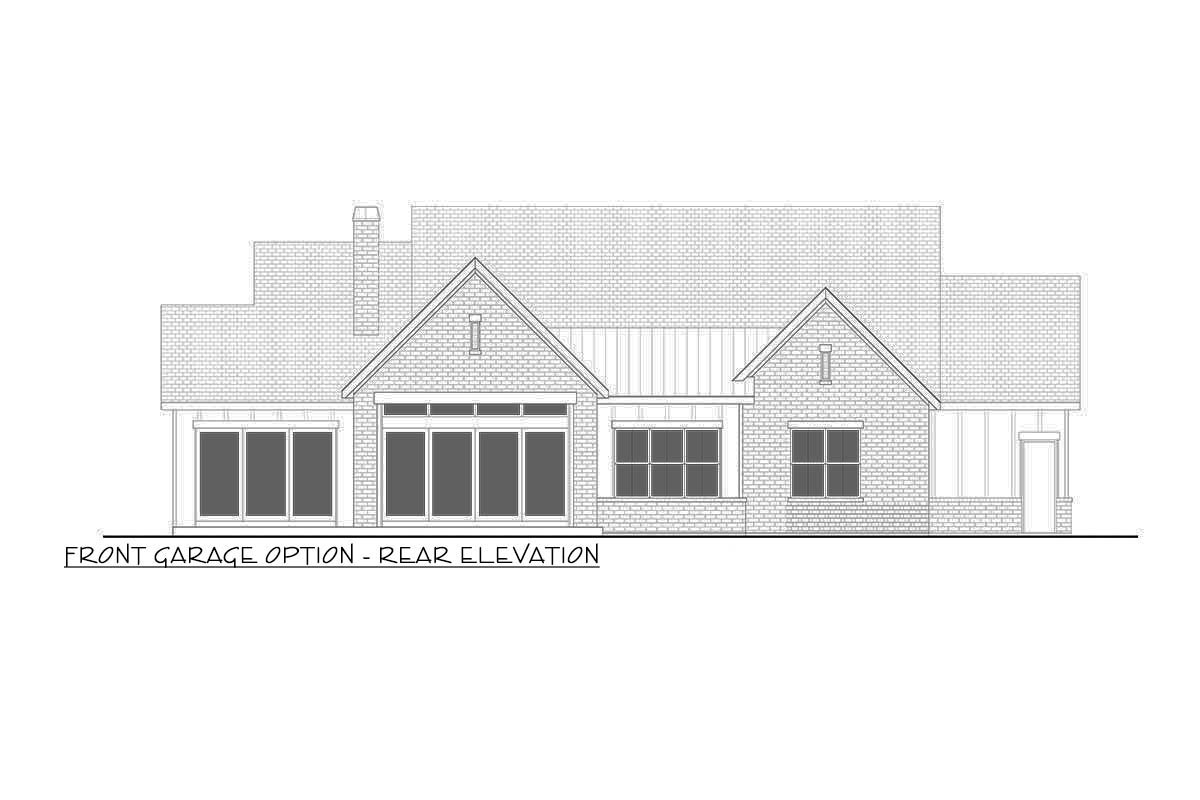

Elevation drawing 7
From the plan set

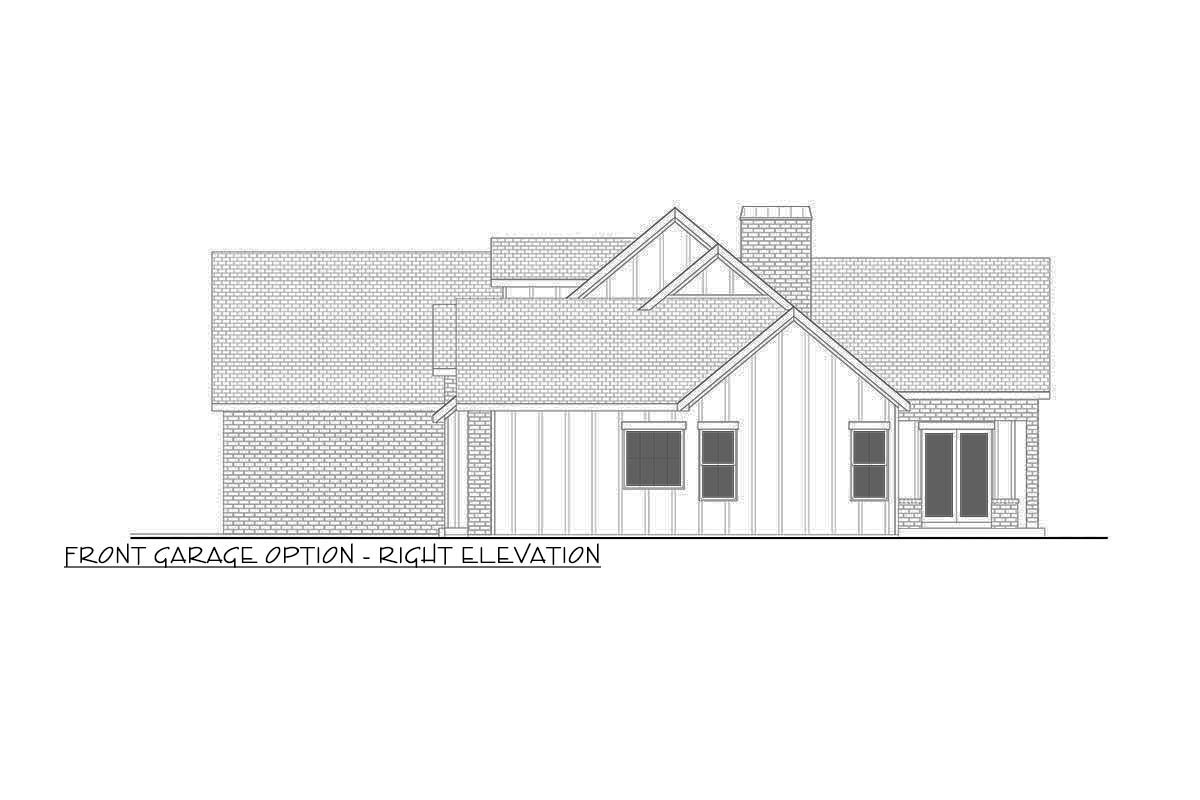

Elevation drawing 8
From the plan set
Dimensions
| Width | 65' 0" |
| Depth | 82' 0" |
| Max ridge height | 27' 2" |
| First-floor ceiling | 10' |
Home specifications
| Category | Sq ft |
|---|---|
| Heated & cooled | 2,500 |
| Garage | 840 |
| Covered porch (combined) | 433 |
| Front porch | 69 |
| Patio | 247 |
| Covered patio | 247 |
| Total gross sq ft | 4,267 |
