4 bedrooms, 3 baths, 2-car garage.

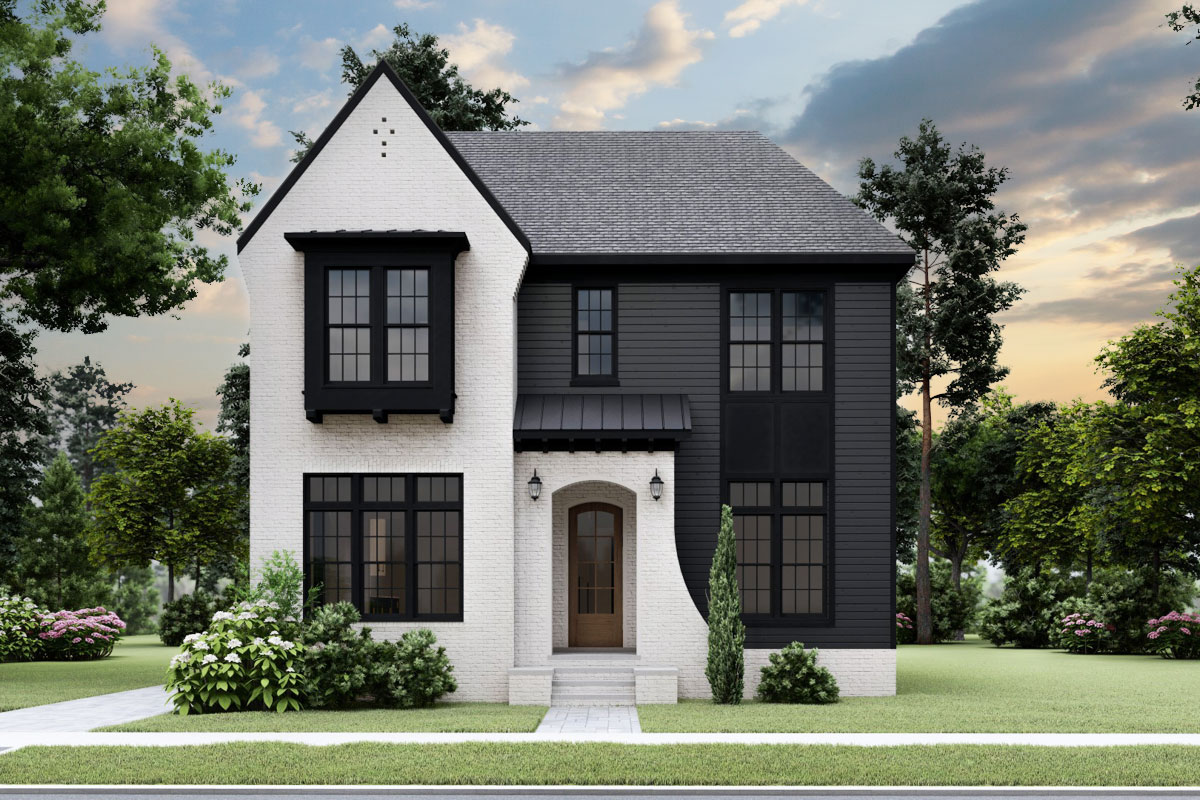

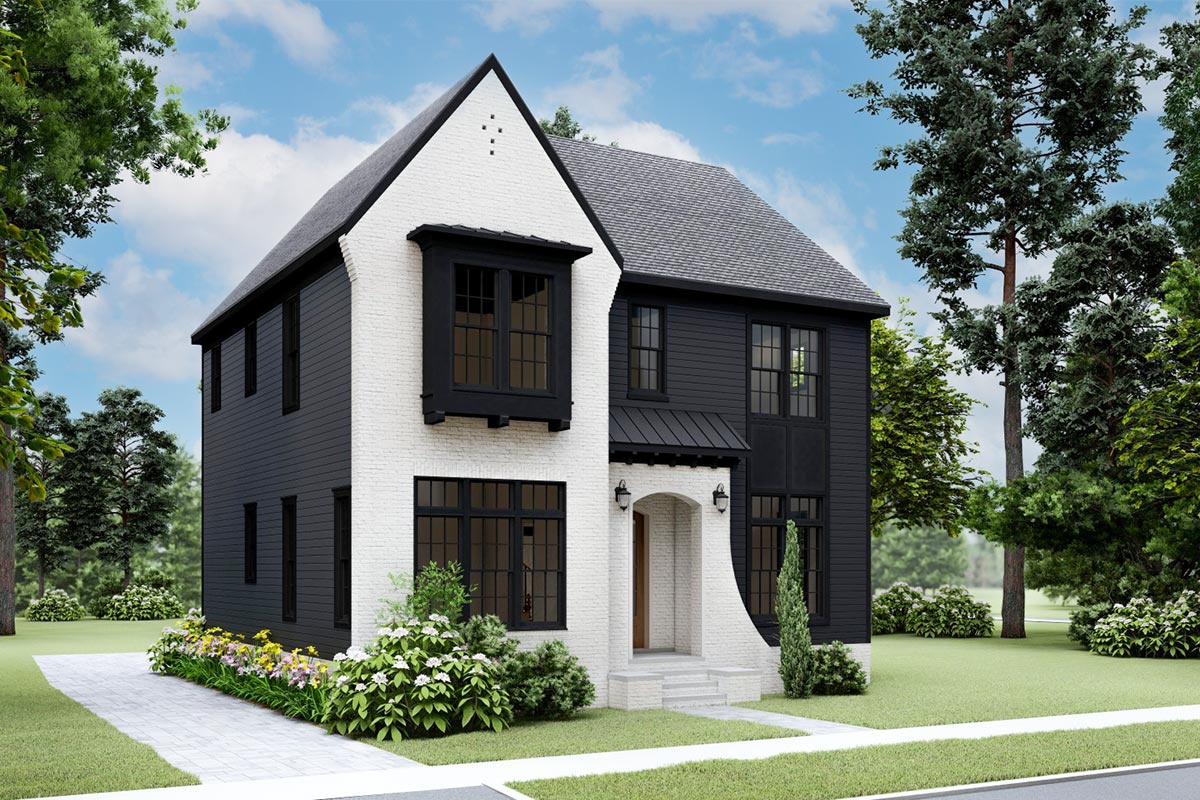

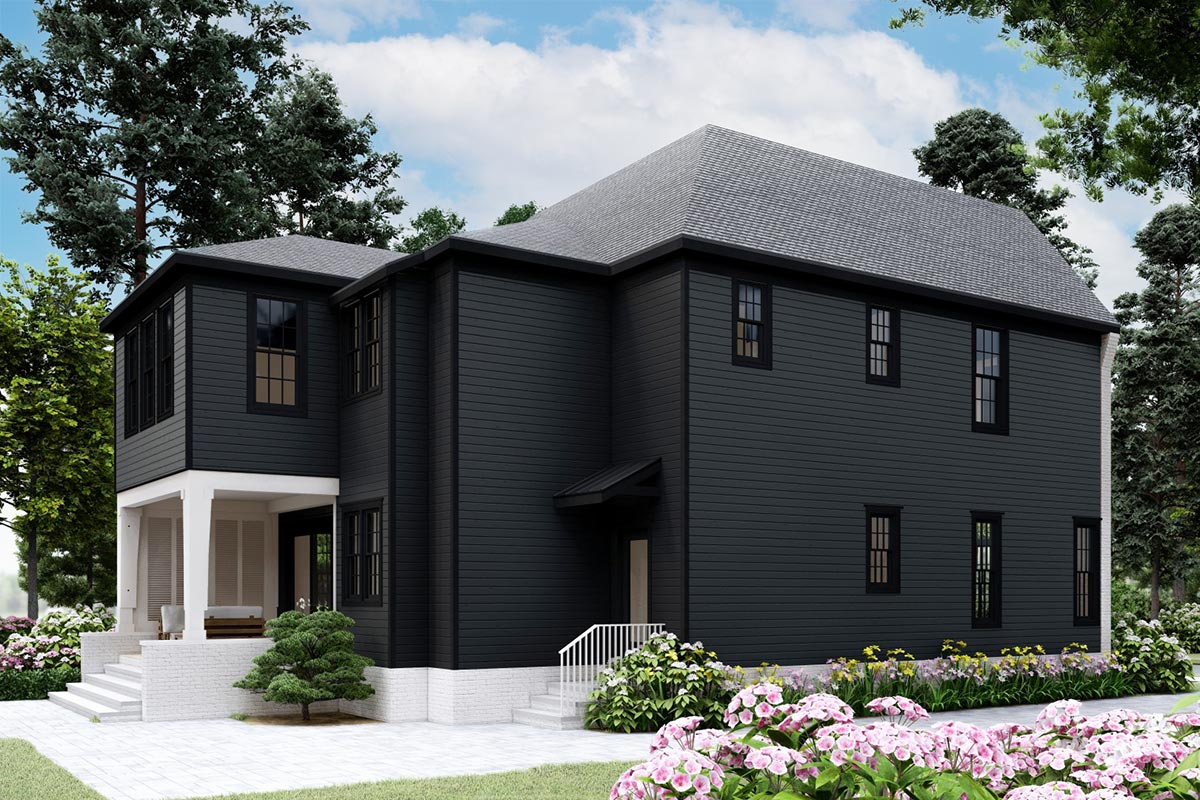

Primary bedroom: upstairs. Exterior as rendered: white or painted brick, lap siding, metal roofing, black windows. Any plan can be built with the materials you choose.

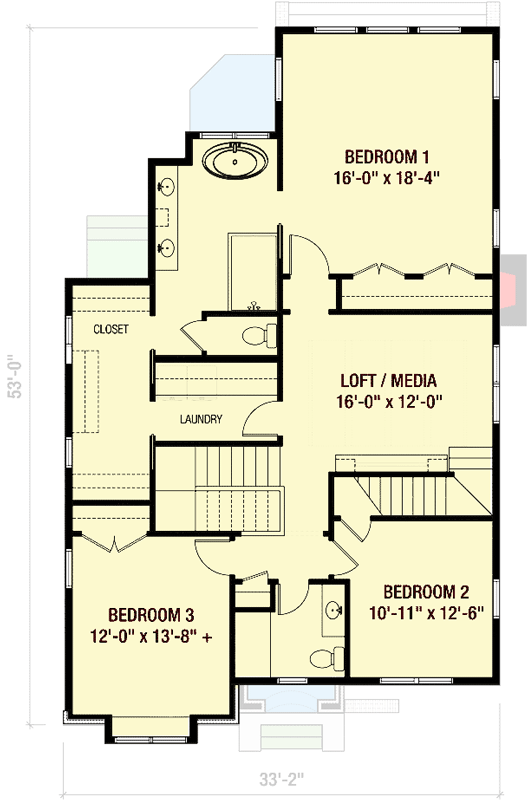

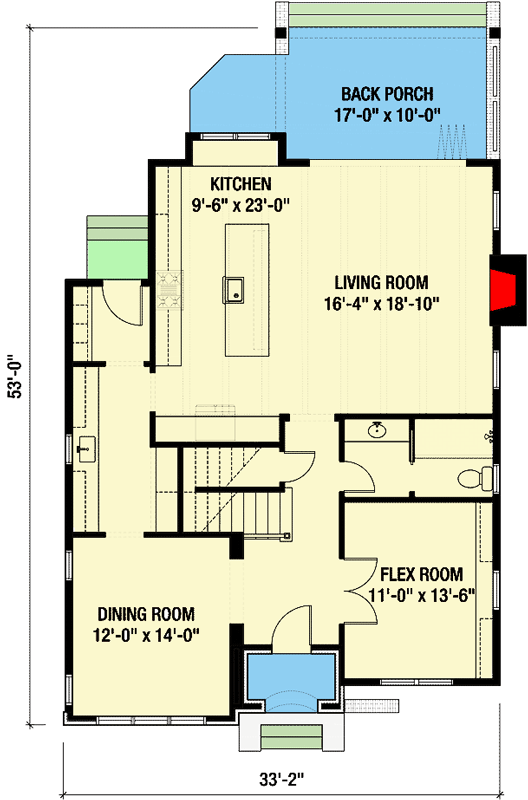

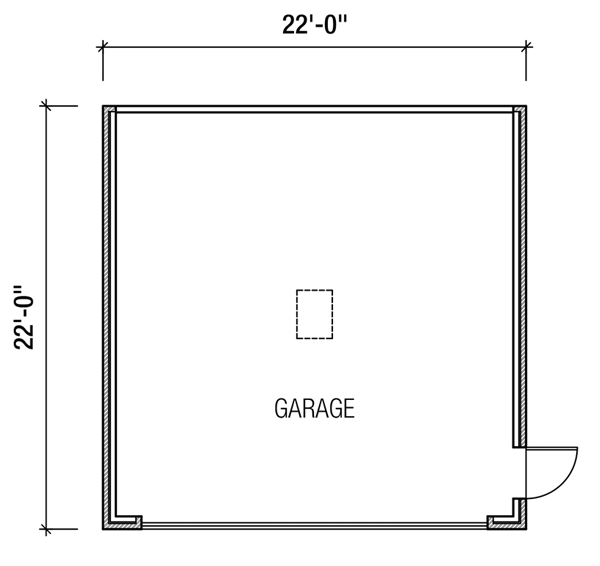

This Transitional Tudor house plan features a charming exterior with an arched entryway. Inside the foyer, french doors open to a flex room, across from the formal dining room. An elongated butler's pantry with a prep sink provides a shortcut into the combined kitchen / living room.A spacious island offers plenty of workspace in the kitchen, and an accordion-style door connects the indoor and outdoor living spaces.Three bedrooms and a loft are located upstairs, including the master bedroom with a closet that connects to the laundry room. A matching 2-Car Detached Garage is included with the plans.




| Width | 33' 0" |
| Depth | 53' 0" |
| Max ridge height | 31' 2" |
| First-floor ceiling | 10' |
| Second-floor ceiling | 9' |
| Category | Sq ft |
|---|---|
| Heated & cooled | 2,796 |
| Garage · Estimated (250 sq ft per car) | 500 |
| Rear porch | 169 |
| Total gross sq ft | 3,465 |
