Transitional
PlanEuropean
The "Clover"
Overview
4
Bedrooms
3
Bathrooms
2,751
Heated sq. ft.
2-car
Garage
2
Stories
4 bedrooms, 3 baths, 2-car garage.
Primary bedroom: upstairs. Exterior as rendered: white exterior: white or painted brick, stone, board and batten, metal roofing, natural wood accents, black windows. Any plan can be built with the materials you choose.
About this home
A two-story European design with 2,751 heated square feet, organized around clear circulation and generous common spaces. The plan includes 4 bedrooms and 3 full baths, plus a 2-car standard garage with front entry. The footprint measures roughly 44' 4" wide by 60' 1" deep, with 10' ceilings on the main level.
Living here centers on the main-floor common area, with sleeping quarters positioned for privacy and quiet. Outdoor living extends the home with a 296 sq. ft. wraparound porch. Construction specs call for a slab foundation and 2x6 exterior walls. Every HRP plan can be tailored to your site and selections, from exterior finishes and cabinetry to layout adjustments that fit how you actually live.
Floor plans

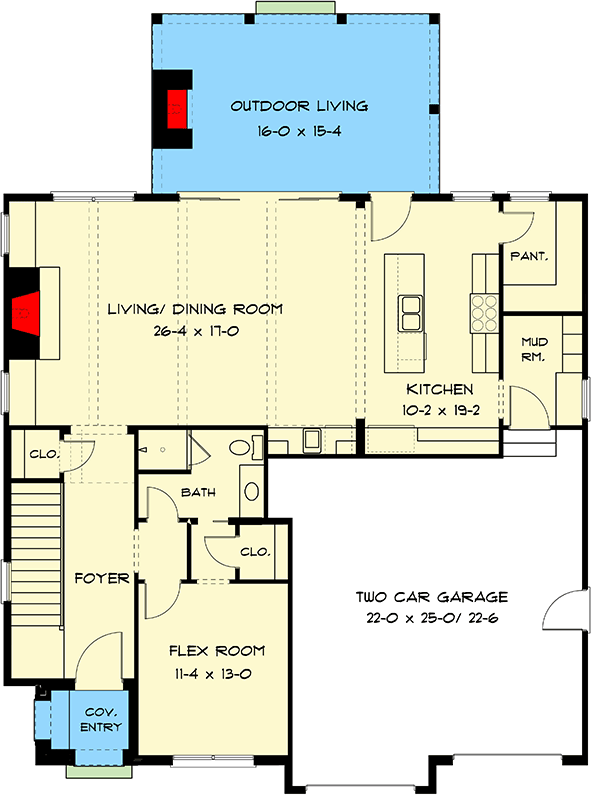

Floor plan drawing 1
Clover

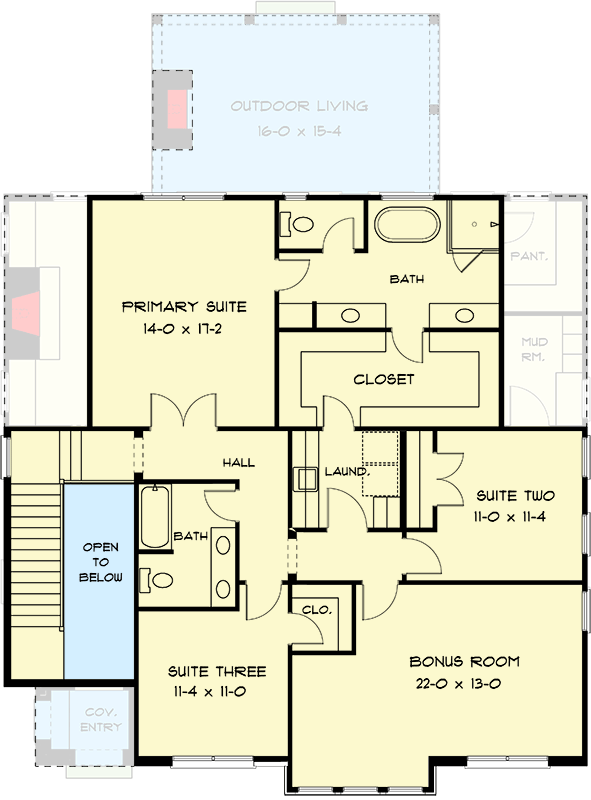

Floor plan drawing 2
Clover
Elevations

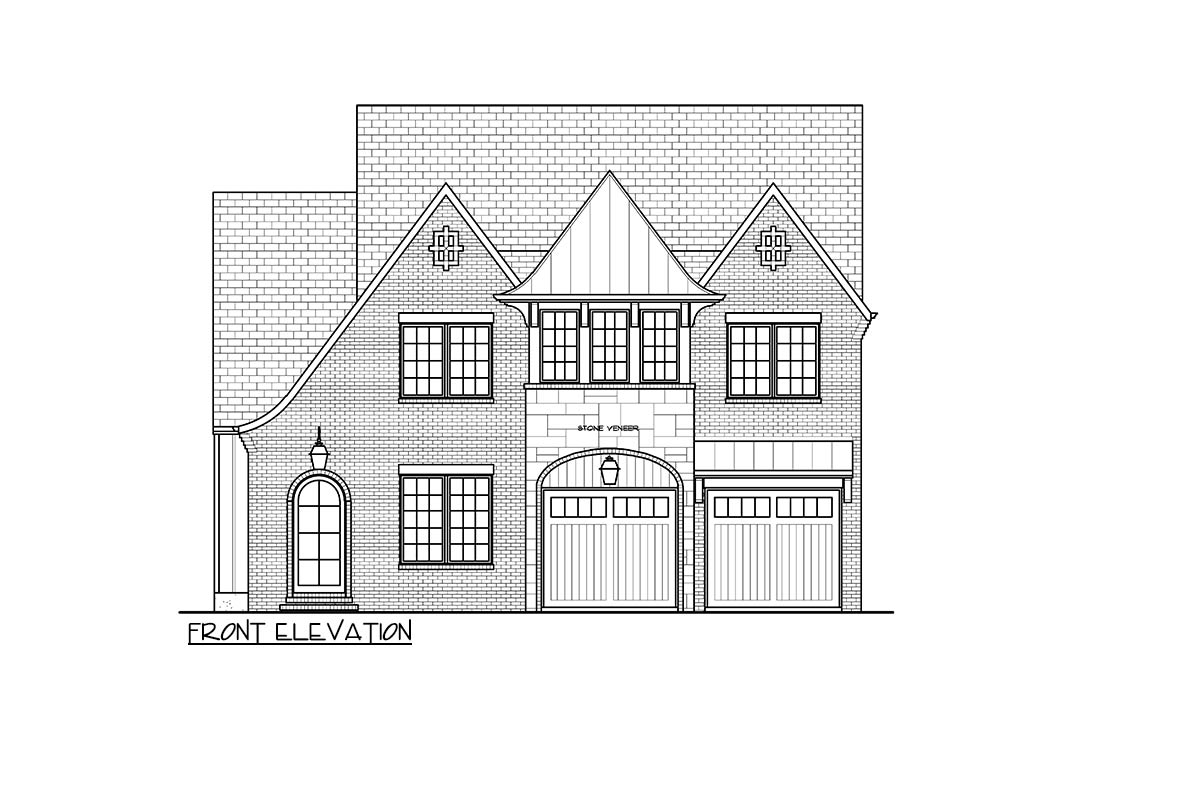

Elevation drawing 1
From the plan set

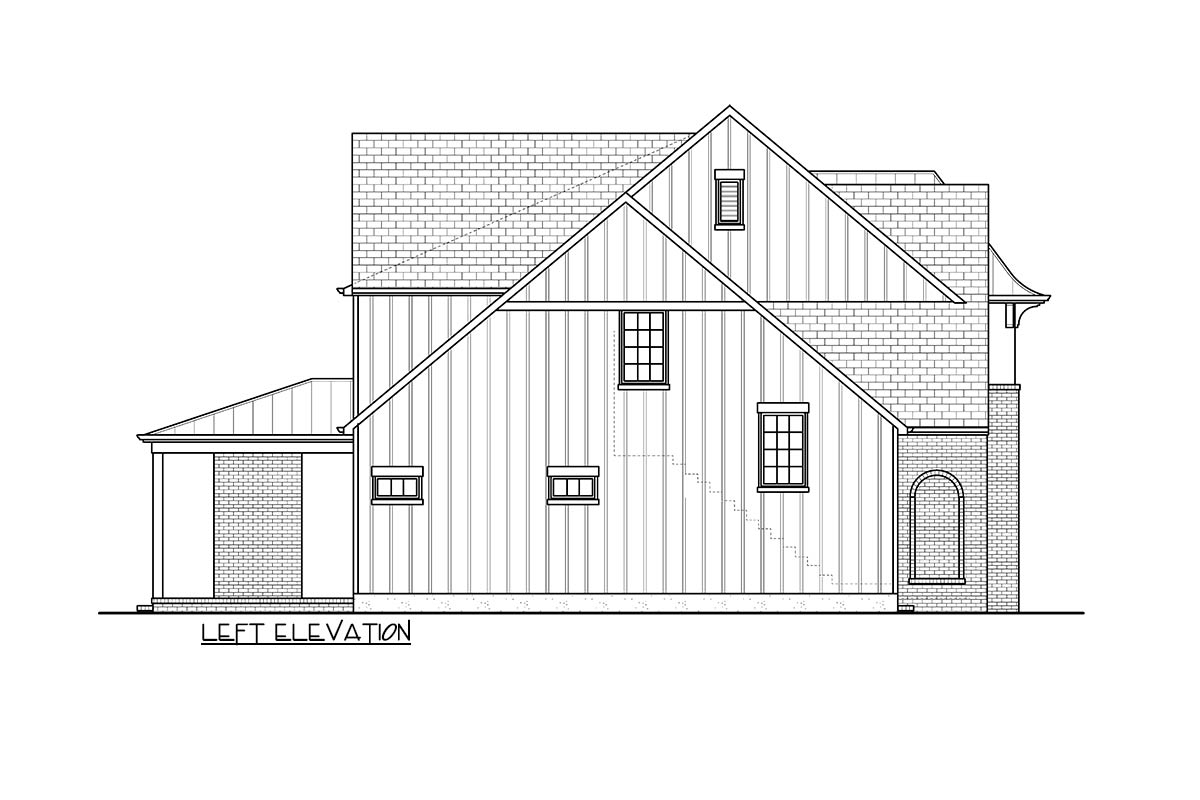

Elevation drawing 2
From the plan set

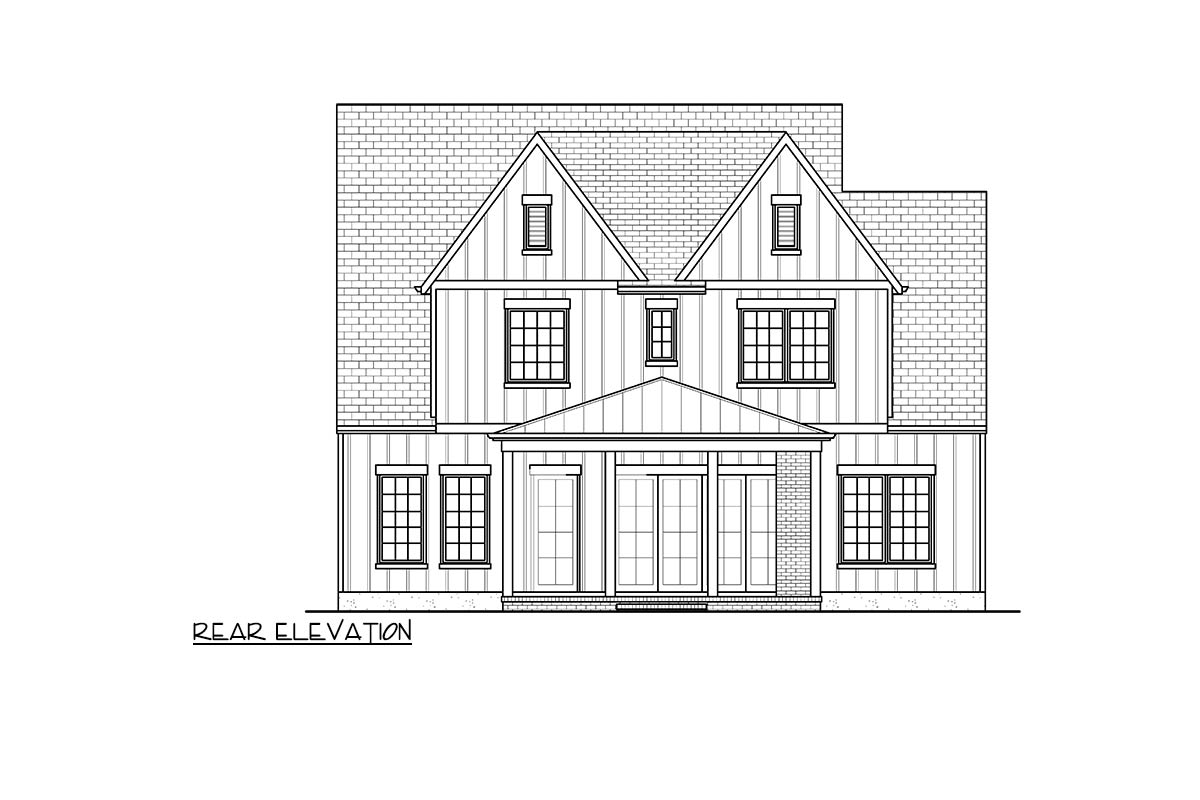

Elevation drawing 3
From the plan set

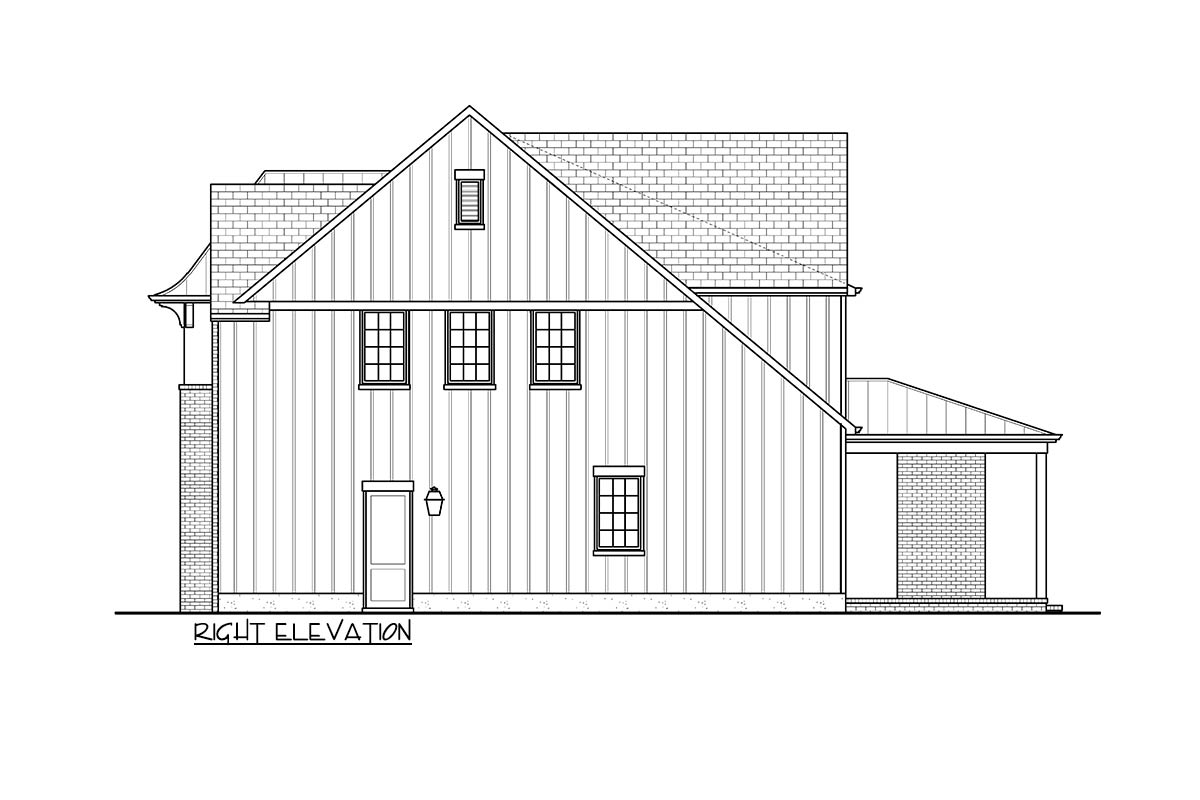

Elevation drawing 4
From the plan set
Dimensions
| Width | 44' 4" |
| Depth | 60' 1" |
| Max ridge height | 33' 3" |
| First-floor ceiling | 10' |
| Second-floor ceiling | 9' |
Home specifications
| Category | Sq ft |
|---|---|
| Heated & cooled | 2,751 |
| Garage | 575 |
| Covered porch (combined) | 296 |
| Total gross sq ft | 3,622 |
