The "Kingsley"
PlanEuropean

The "Kingsley"

exterior_rendering
Overview
4
Bedrooms
4.5
Bathrooms
3,963
Heated sq. ft.
3-car
Garage
2
Stories

4 bedrooms, 4 full + 1 half bath, 3-car garage.

Primary bedroom: main floor. Exterior as rendered: white exterior: white or painted brick, board and batten, metal roofing, natural wood accents, black windows. Any plan can be built with the materials you choose.

About this home

Built on 3,963 heated square feet, the two-story European footprint keeps the primary suite convenient while framing the home around a central gathering zone. The plan includes 4 bedrooms and 4 full baths and 1 half bath, plus a 3-car attached garage with courtyard entry. The footprint measures roughly 66' 10" wide by 85' 11" deep, with 10' ceilings on the main level.

Day to day, the plan reads naturally: the kitchen anchors the main floor, and the bedrooms pull back from the busier living zones. Outdoor living extends the home with a 319 sq. ft. lanai. Construction specs call for a crawl foundation and 2x6 exterior walls. Like every HRP plan, this one is fully customizable to your homesite and personal taste: exterior materials, interior finishes, and layout tweaks included.

Floor plans

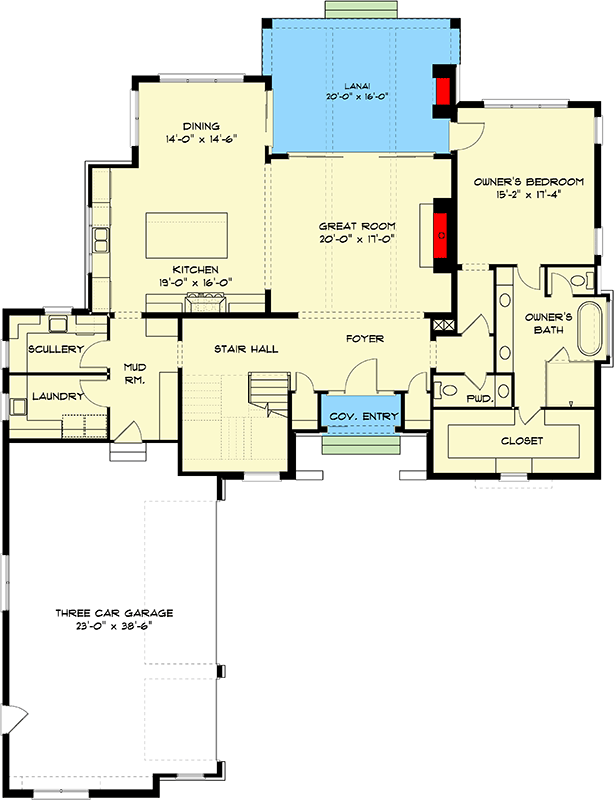

Floor plan drawing 1
Floor plan drawing 1
Kingsley

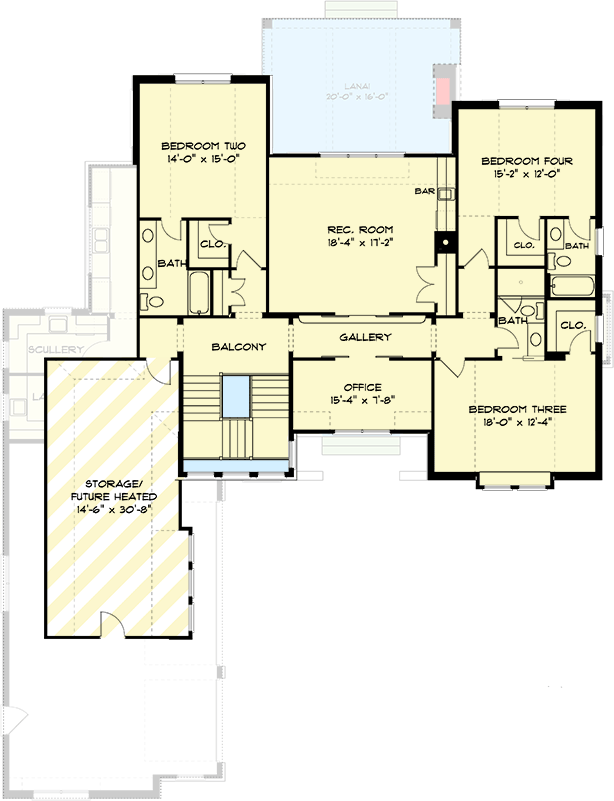

Floor plan drawing 2
Floor plan drawing 2
Kingsley

Elevations

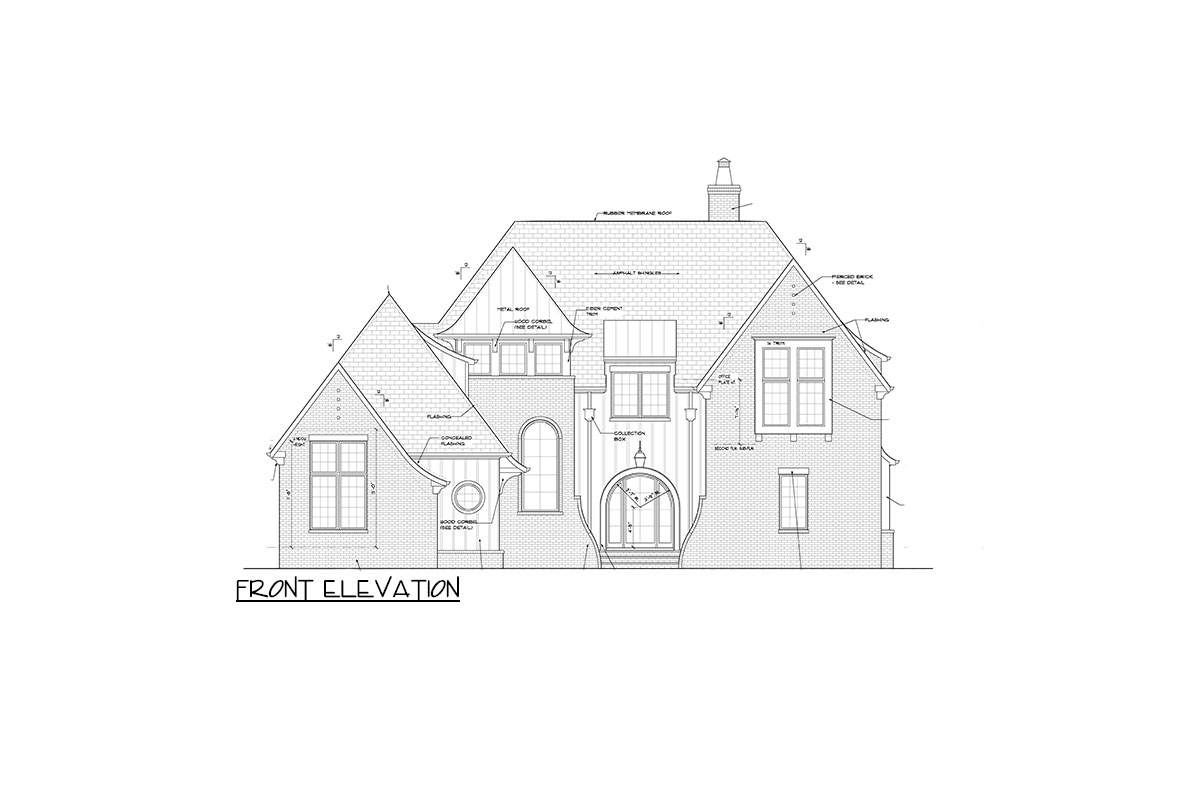

The "Kingsley" elevation drawing 1
Elevation drawing 1
From the plan set

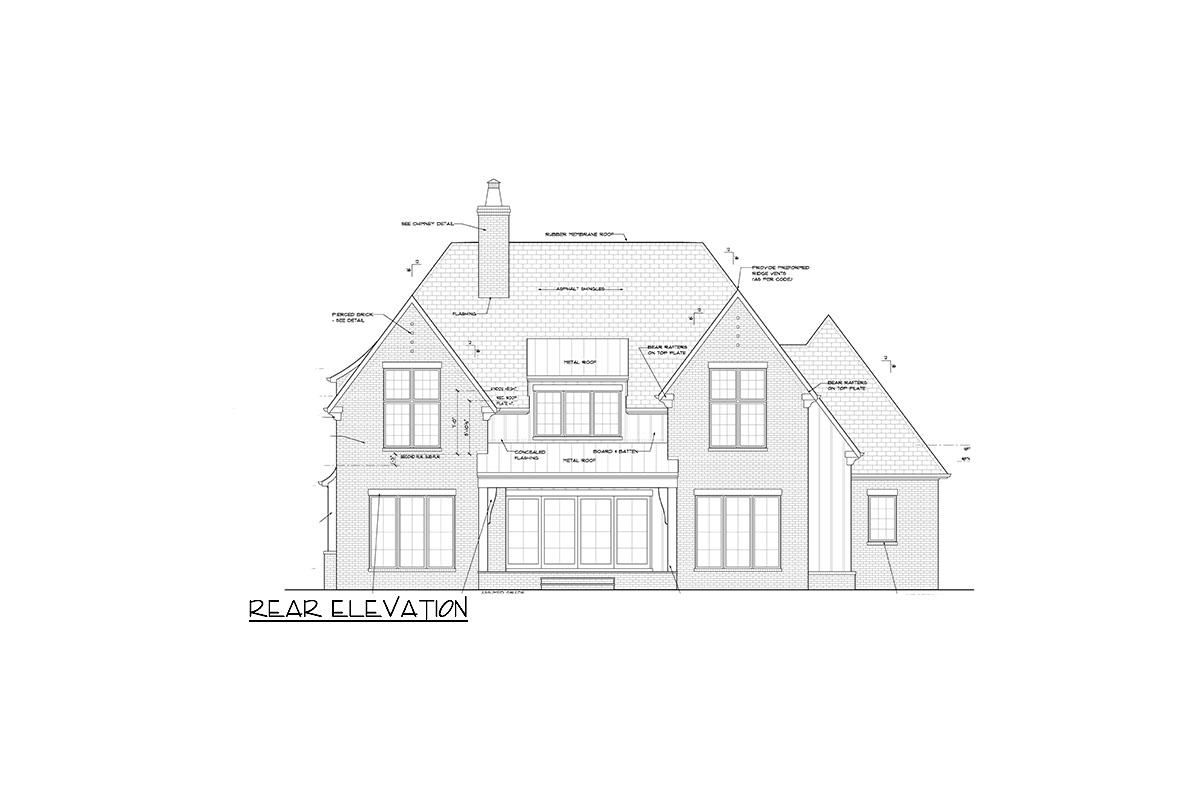

The "Kingsley" elevation drawing 2
Elevation drawing 2
From the plan set

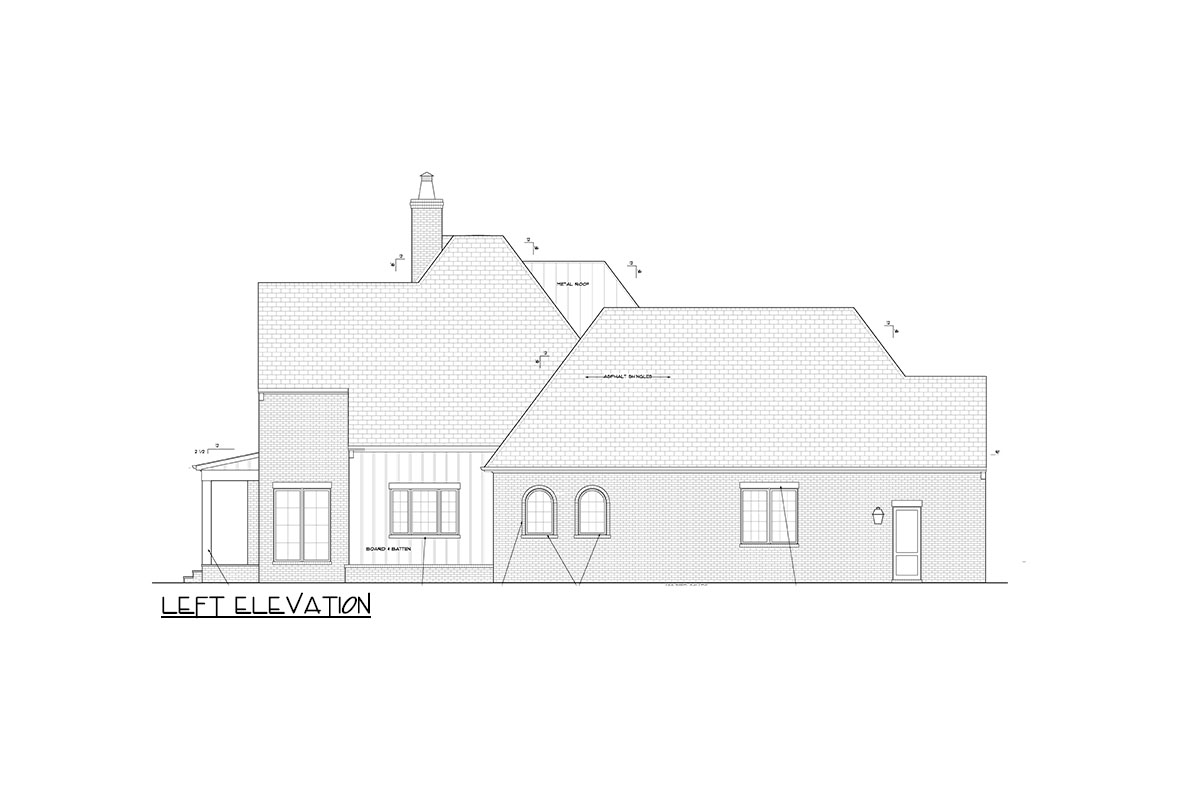

The "Kingsley" elevation drawing 3
Elevation drawing 3
From the plan set

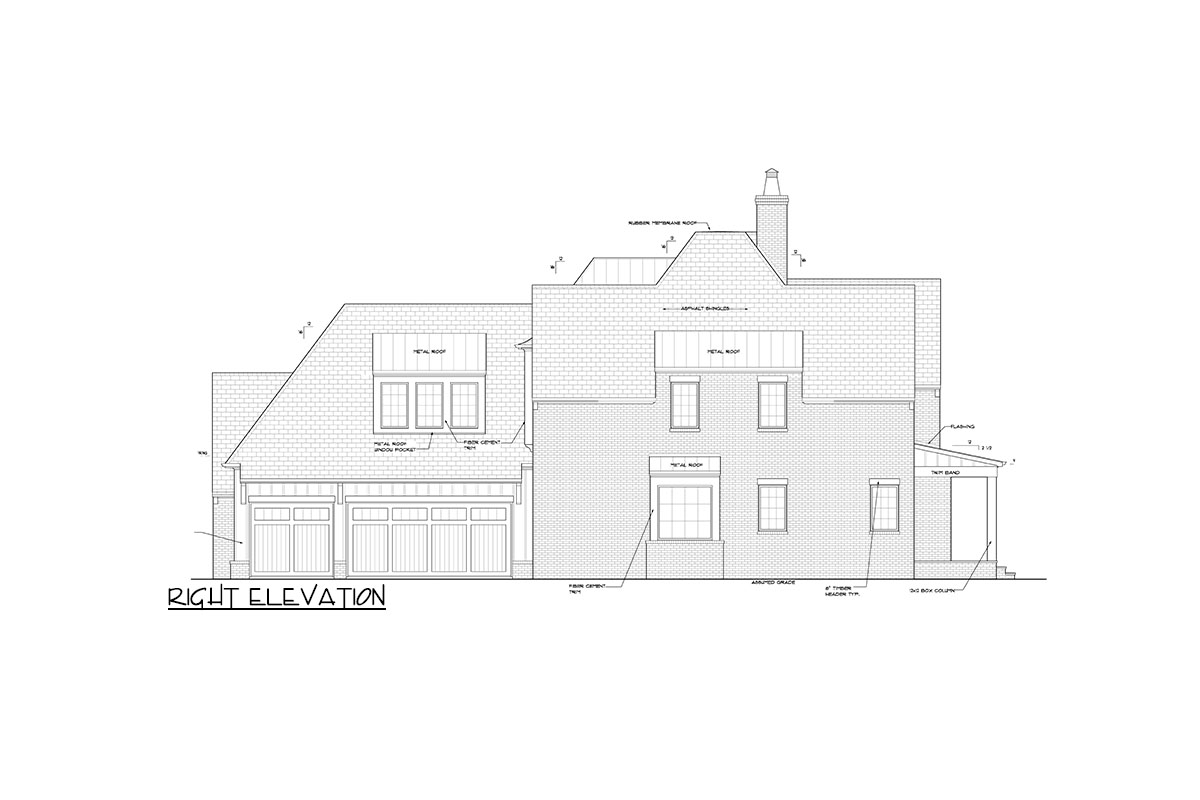

The "Kingsley" elevation drawing 4
Elevation drawing 4
From the plan set

Dimensions

Width66' 10"
Depth85' 11"
First-floor ceiling10'
Second-floor ceiling9'

Home specifications

CategorySq ft
Heated & cooled3,963
Garage904
Lanai319
Total gross sq ft5,186

Build This House

Estimated build price
$1,058,000
Land and site work additional
Plan-specific estimate

Ready to build this home? Send us your details and our team will reach out.

Not ready yet?

Ask a question or get floor plan details. No commitment.
