Transitional
PlanTransitional
The "Oasis"
Flexible — build on your lot
Overview
3
Bedrooms
2.5
Bathrooms
2,370
Heated sq. ft.
2-car
Garage
2
Stories
3 bedrooms, 2 full + 1 half bath, 2-car garage.
Primary bedroom: main floor. Exterior as rendered: white exterior: stucco, metal roofing, natural wood accents, black windows. Any plan can be built with the materials you choose.
About this home
A two-story Transitional design with 2,370 heated square feet, organized around clear circulation and generous common spaces. The plan includes 3 bedrooms and 2 full baths and 1 half bath, plus a 2-car attached garage with courtyard entry. The footprint measures roughly 63' 8" wide by 67' 10" deep, with 10' ceilings on the main level.
Living here centers on the main-floor common area, with sleeping quarters positioned for privacy and quiet. Construction specs call for a slab foundation, stick-framed construction, a primary roof pitch of 16 on 12, and 2x4 exterior walls. Every HRP plan can be tailored to your site and selections, from exterior finishes and cabinetry to layout adjustments that fit how you actually live.
Floor plans

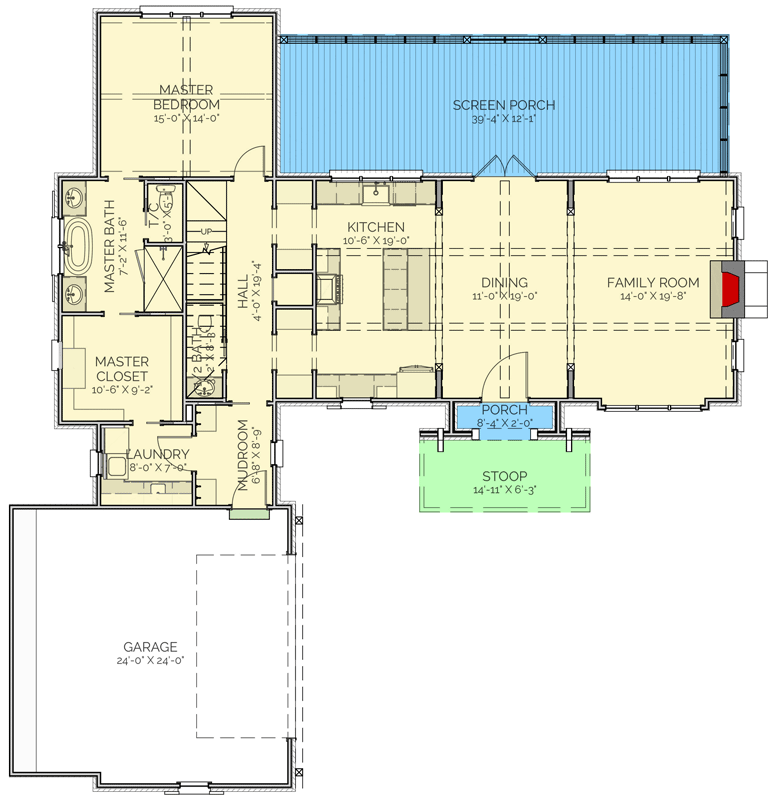

Floor plan drawing 1
Oasis

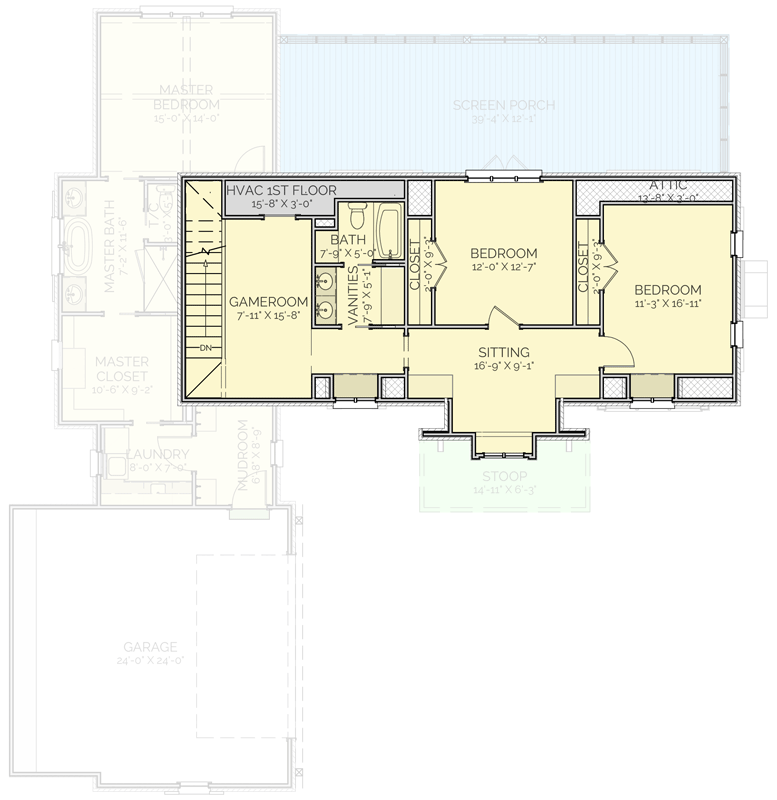

Floor plan drawing 2
Oasis
Elevations

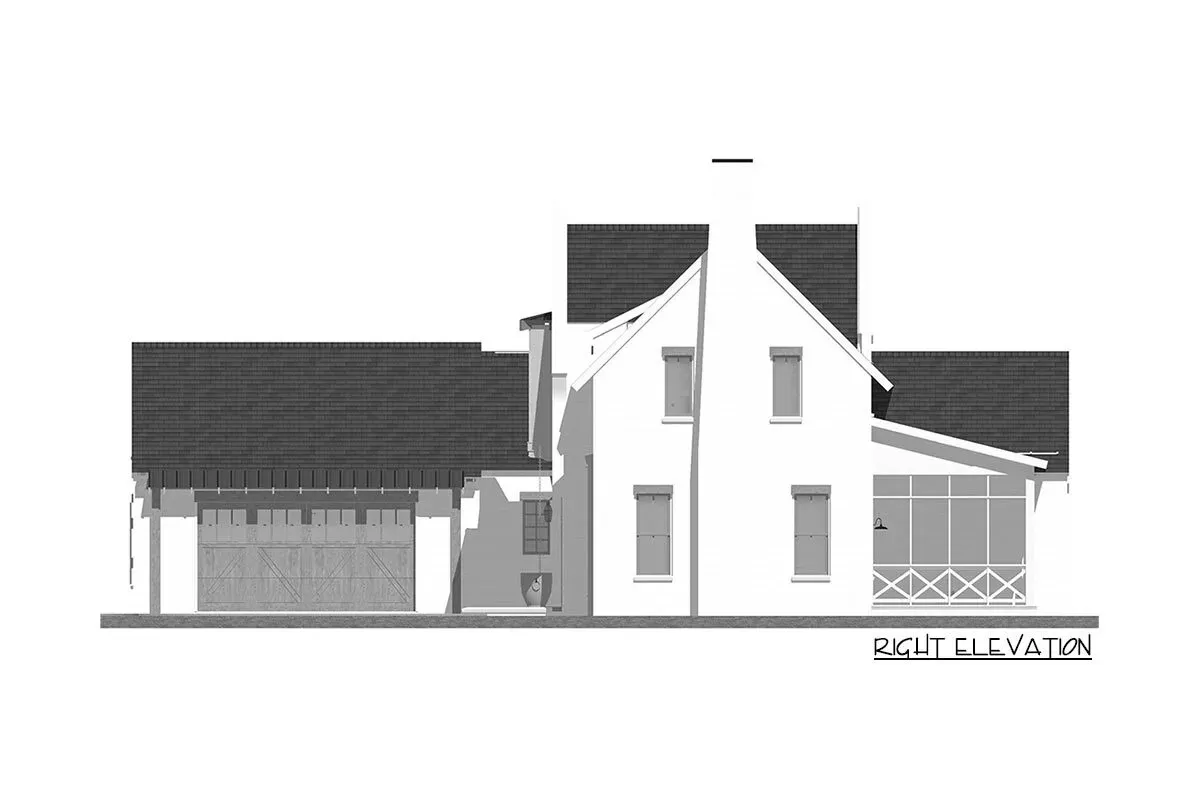

Elevation drawing 1
From the plan set

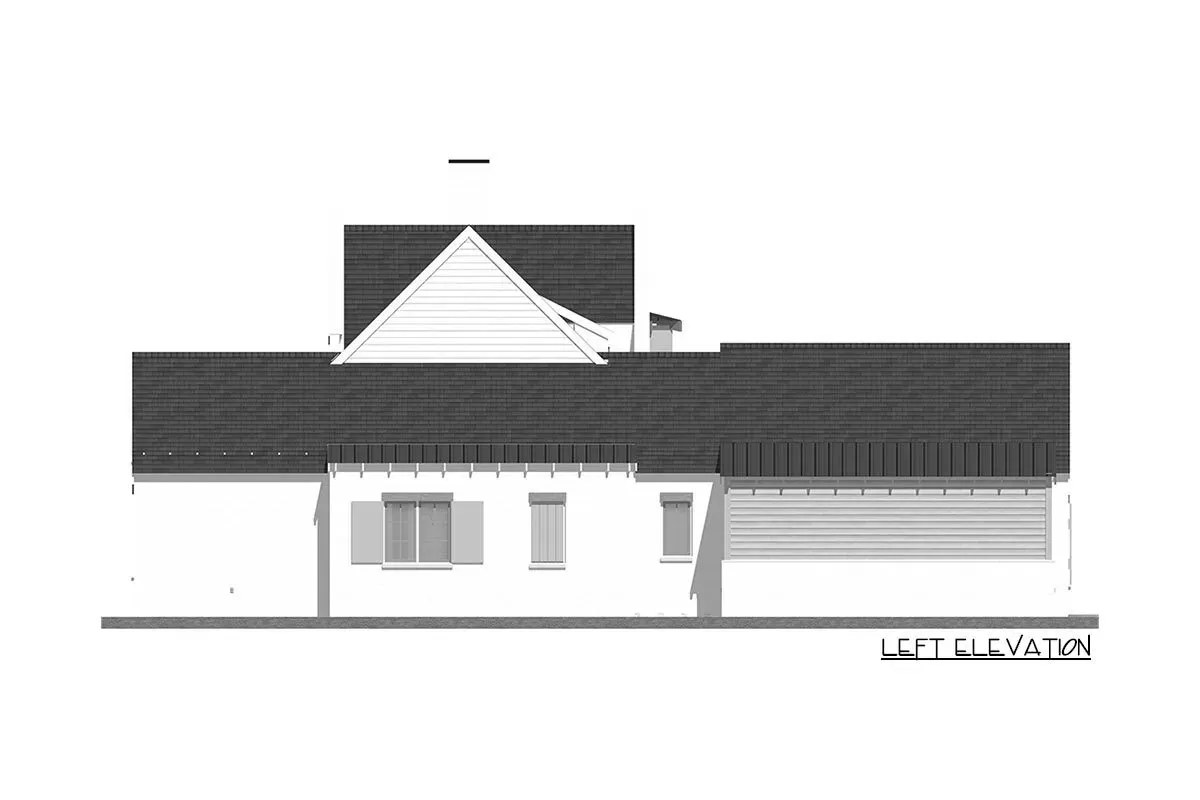

Elevation drawing 2
From the plan set

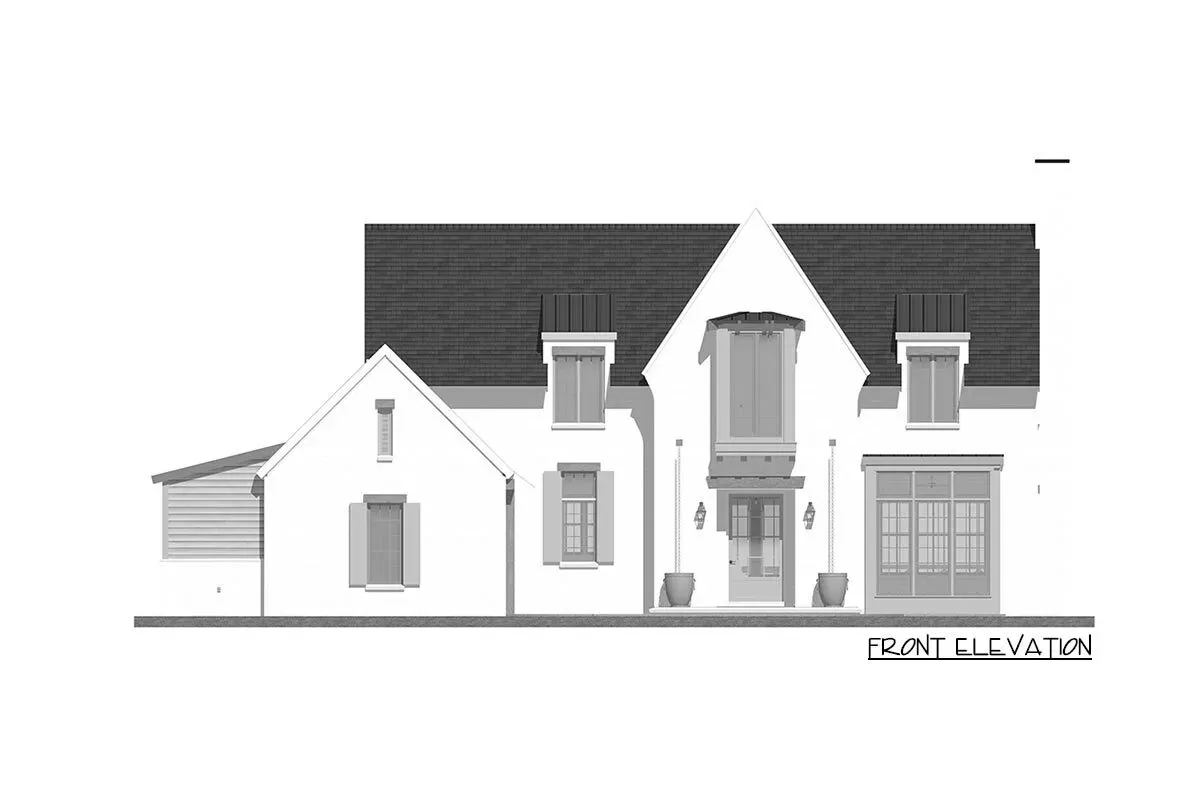

Elevation drawing 3
From the plan set
Dimensions
| Width | 63' 8" |
| Depth | 67' 10" |
| Max ridge height | 29' 6" |
| First-floor ceiling | 10' |
| Second-floor ceiling | 8' |
Home specifications
| Category | Sq ft |
|---|---|
| Heated & cooled | 2,370 |
| Garage | 601 |
