Transitional
PlanTransitional
The "Whitten"
Overview
3
Bedrooms
2.5
Bathrooms
1,956
Heated sq. ft.
1-car
Garage
2
Stories
3 bedrooms, 2 full + 1 half bath, 1-car garage.
Primary bedroom: upstairs. Exterior as rendered: white exterior: white or painted brick, board and batten, lap siding, metal roofing, black windows. Any plan can be built with the materials you choose.
About this home
This 3-bed Transitional-style house plan is great for your narrow lot with a footprint that is just 21' wide and an alley-access rear-facing garage.A home office is located in front of the house, giving you a great work-from-home space.The living room flows to the dining room which is open to the kitchen giving you a great entertaining setup.All three bedrooms - each with walk-in closets - are located on the second floor. Related Plan: Get an alternate version with house plan 421527CHD.
Floor plans

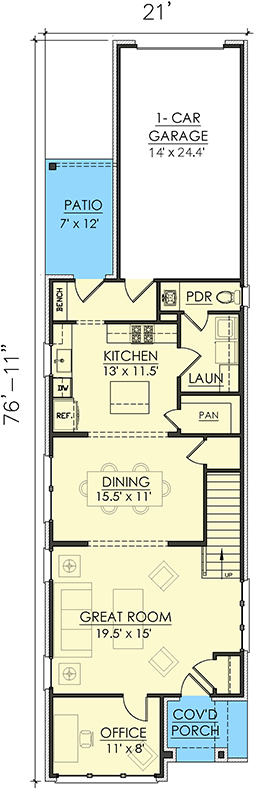

Floor plan drawing 1
Whitten

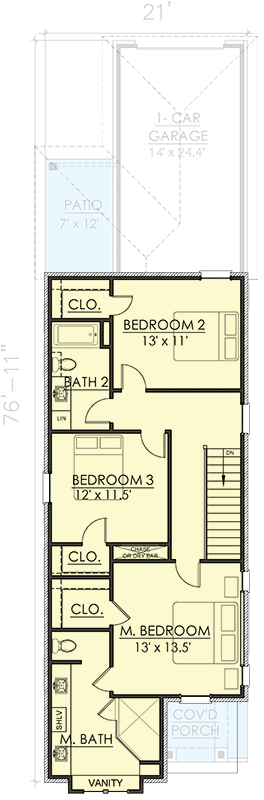

Floor plan drawing 2
Whitten
Dimensions
| Width | 21' 0" |
| Depth | 76' 11" |
| Max ridge height | 30' 5" |
| First-floor ceiling | 9' |
| Second-floor ceiling | 9' |
Home specifications
| Category | Sq ft |
|---|---|
| Heated & cooled | 1,956 |
| Garage | 347 |
| Front porch | 53 |
| Rear porch | 56 |
| Total gross sq ft | 2,412 |
