Craftsman
PlanFarmhouse
The "Pinegrove"
Overview
3–4
Bedrooms
2.5
Bathrooms
2,606
Heated sq. ft.
2-car
Garage
1
Story
3–4 bedrooms, 2 full + 1 half bath, 2-car garage.
Primary bedroom: main floor.
About this home
A single-story Farmhouse design with 2,606 heated square feet, organized around clear circulation and generous common spaces. The plan includes 3+ bedrooms and 2 full baths and 1 half bath, plus a 2-car attached garage with side entry. The footprint measures roughly 67' 10" wide by 62' 8" deep, with 9' ceilings on the main level.
Living here centers on the main-floor common area, with sleeping quarters positioned for privacy and quiet. Outdoor living extends the home with a 671 sq. ft. wraparound porch. Construction specs call for a monolithic slab or slab foundation, truss-framed construction, and 2x6 exterior walls. Every HRP plan can be tailored to your site and selections, from exterior finishes and cabinetry to layout adjustments that fit how you actually live.
Floor plans

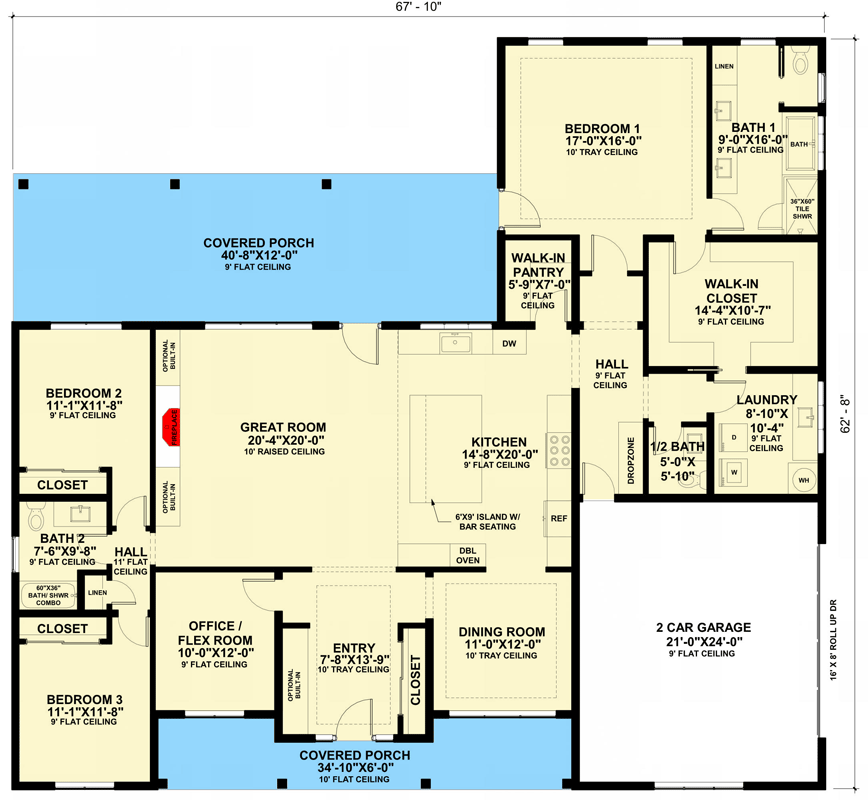

Floor plan
Pinegrove
Elevations

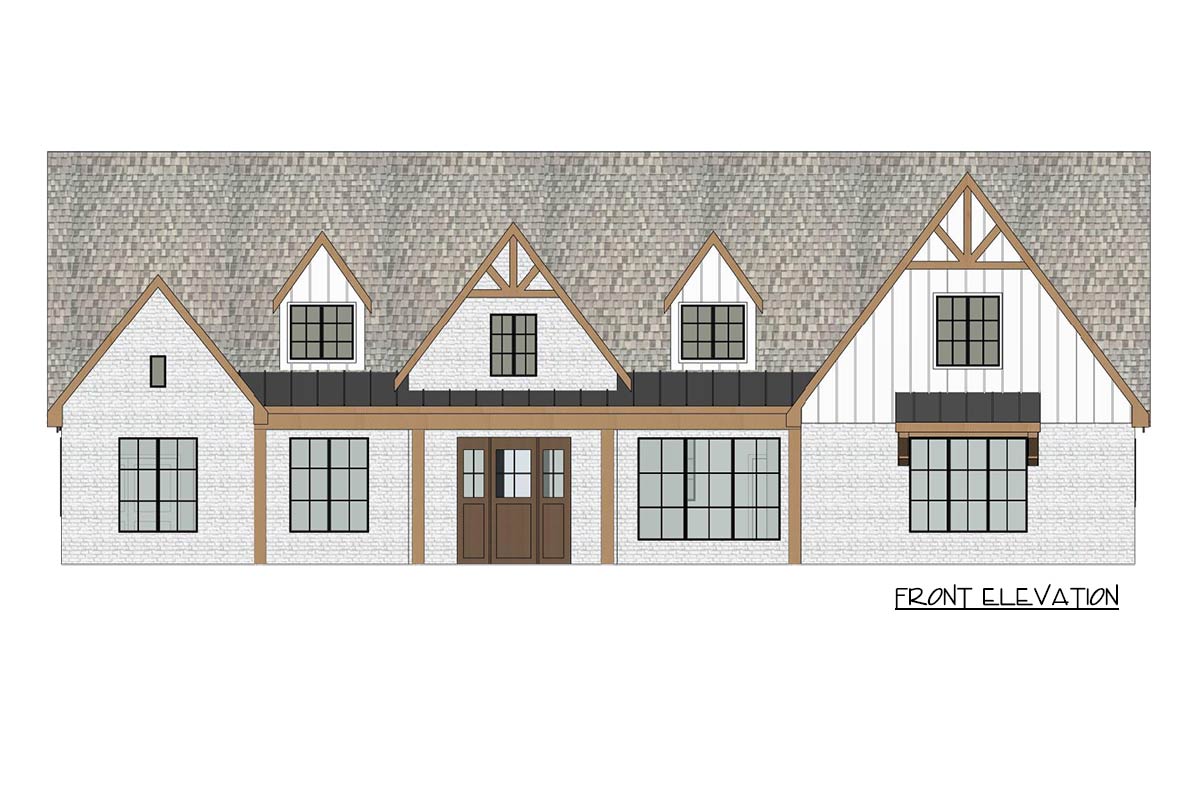

Elevation drawing 1
From the plan set

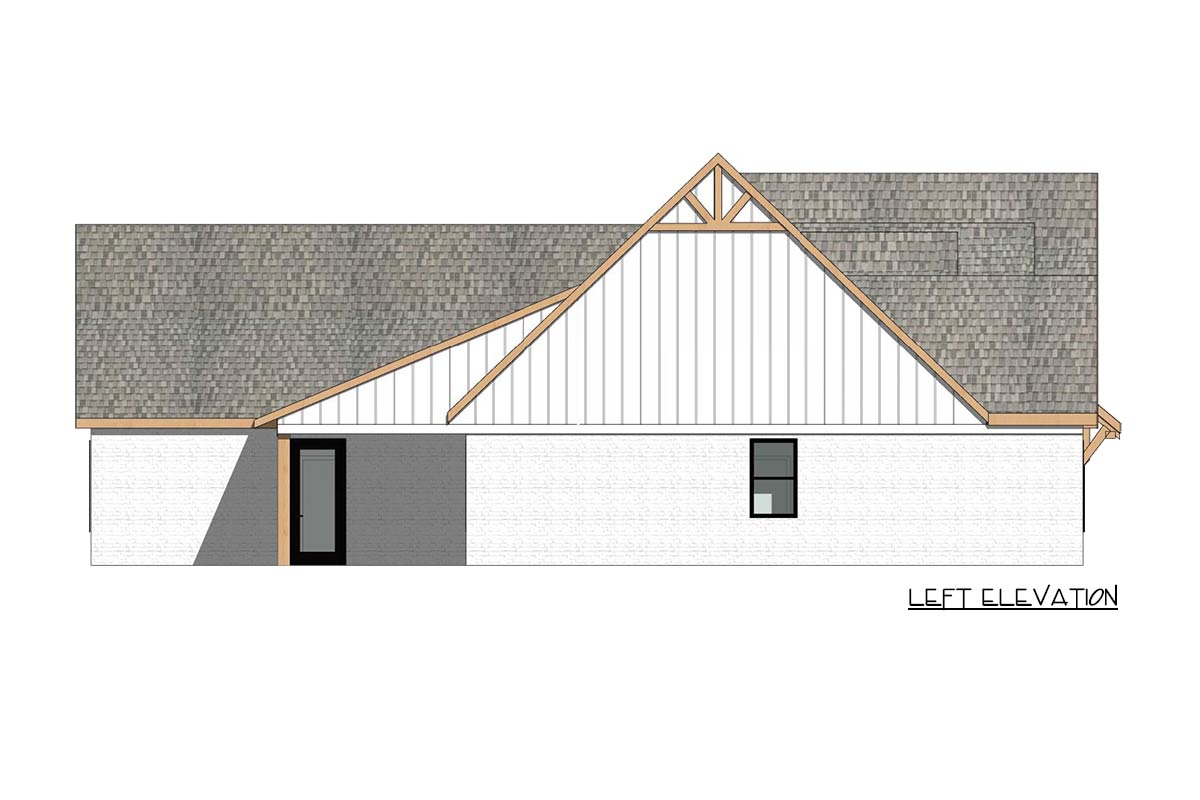

Elevation drawing 2
From the plan set

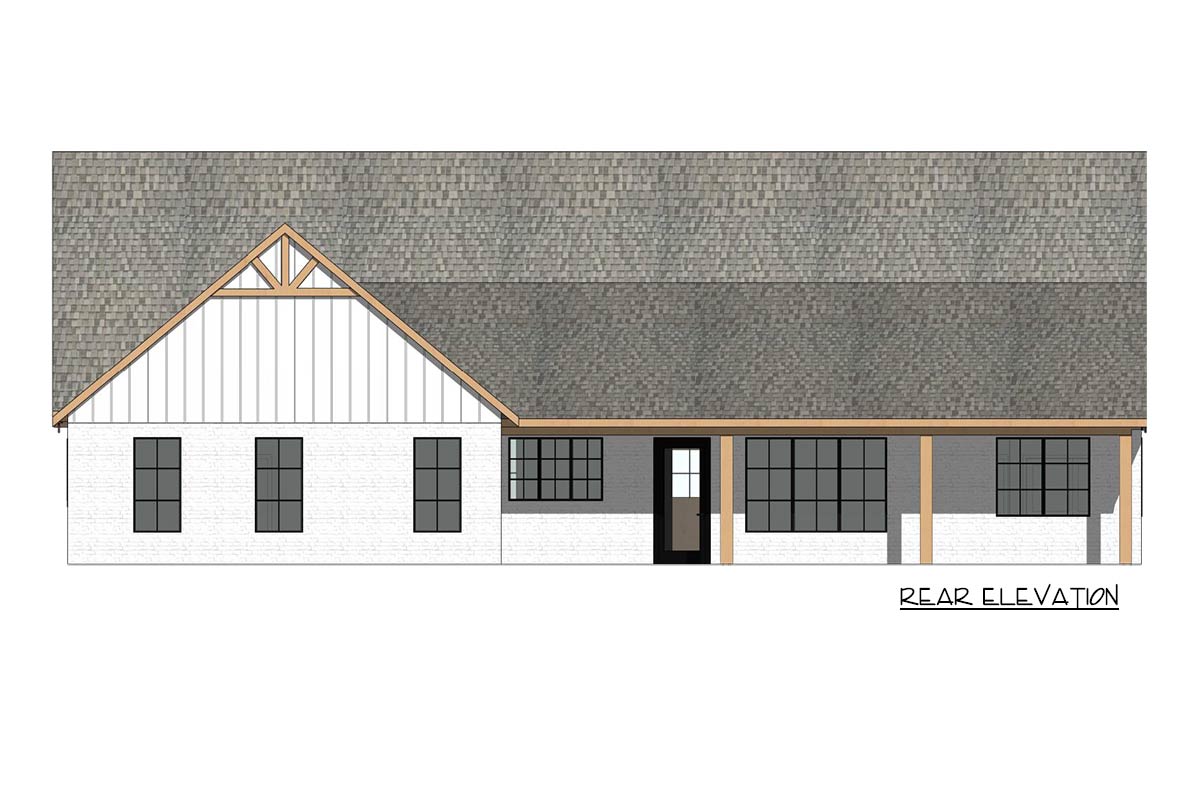

Elevation drawing 3
From the plan set

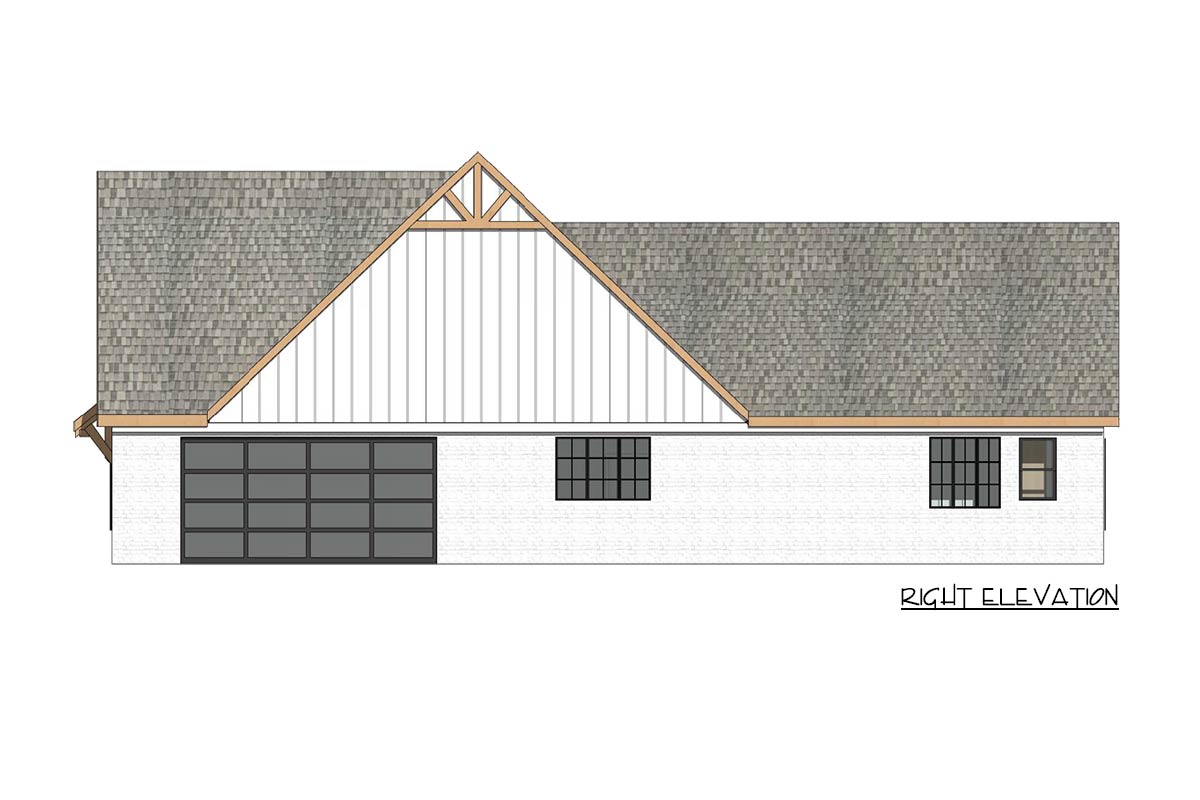

Elevation drawing 4
From the plan set
Dimensions
| Width | 67' 10" |
| Depth | 62' 8" |
| Max ridge height | 26' 1" |
| First-floor ceiling | 9' Room Ceiling Type Height Front Porch Flat 10' 0'' Entry Tray 10' 0'' Great Room Raised 10' 0'' Dining Room Tray 10' 0'' Bedroom 1 Tray 10' 0'' |
Home specifications
| Category | Sq ft |
|---|---|
| Heated & cooled | 2,606 |
| Garage · Estimated (250 sq ft per car) | 500 |
| Covered porch (combined) | 671 |
| Front porch | 183 |
| Rear porch | 488 |
| Total gross sq ft | 3,777 |
