Craftsman
Plan 51793HZ
The Juniperwood
3–5 beds · 2.5–3.5 baths · 2,373 sq ft · 2-car garage · Single story
Single-story living with a 336 sq ft bonus room (reached by stairs).
PlanModern
The "Pivot"
Overview
3
Bedrooms
3.5
Bathrooms
2,383
Heated sq. ft.
2-car
Garage
1
Story
3 bedrooms, 3 full + 1 half bath, 2-car garage.
Primary bedroom: main floor. Exterior as rendered: white exterior: stone, board and batten, metal roofing, black windows. Any plan can be built with the materials you choose.
About this home
A single-story Modern design with 2,383 heated square feet, organized around clear circulation and generous common spaces. The plan includes 3 bedrooms and 3 full baths and 1 half bath, plus a 2-car attached garage with side entry. The footprint measures roughly 76' 8" wide by 62' 4" deep, with 10' ceilings on the main level.
Living here centers on the main-floor common area, with sleeping quarters positioned for privacy and quiet. Outdoor living extends the home with a 48 sq. ft. front porch and a 472 sq. ft. rear porch. Construction specs call for a slab foundation, stick-framed construction, a primary roof pitch of 9 on 12, and 2x4 exterior walls. Every HRP plan can be tailored to your site and selections, from exterior finishes and cabinetry to layout adjustments that fit how you actually live.
Floor plans

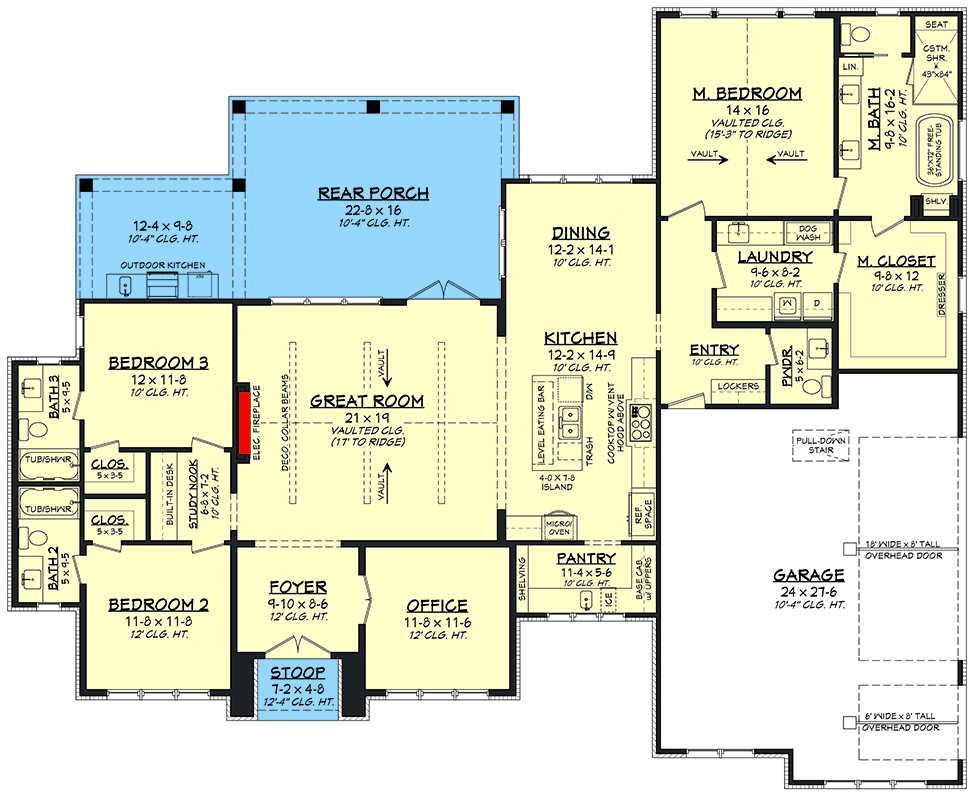

Floor plan drawing 1
Pivot
Floor plan drawing 2
Pivot
Elevations
Elevation drawing 1
From the plan set
Elevation drawing 2
From the plan set
Elevation drawing 3
From the plan set
Elevation drawing 4
From the plan set
Dimensions
| Width | 76' 8" |
| Depth | 62' 4" |
| Max ridge height | 28' 0" |
| First-floor ceiling | 10' |
Home specifications
| Category | Sq ft |
|---|---|
| Heated & cooled | 2,383 |
| Garage | 743 |
| Front porch | 48 |
| Rear porch | 472 |
| Total gross sq ft | 3,646 |
