Craftsman
PlanFarmhouse
The "Silverbell"
Overview
4
Bedrooms
2.5
Bathrooms
1,926
Heated sq. ft.
1-car
Garage
2
Stories
4 bedrooms, 2 full + 1 half bath, 1-car garage.
Primary bedroom: main floor. Exterior as rendered: white exterior: board and batten, metal roofing, natural wood accents, black windows. Any plan can be built with the materials you choose.
About this home
Built on 1,926 heated square feet, the two-story Farmhouse footprint keeps the primary suite convenient while framing the home around a central gathering zone. The plan includes 4 bedrooms and 2 full baths and 1 half bath, plus a 1-car attached garage with front entry. The footprint measures roughly 30' 0" wide by 64' 0" deep.
Day to day, the plan reads naturally: the kitchen anchors the main floor, and the bedrooms pull back from the busier living zones. Construction specs call for a crawl or slab foundation, a primary roof pitch of 10 on 12, and 2x6 exterior walls. Like every HRP plan, this one is fully customizable to your homesite and personal taste: exterior materials, interior finishes, and layout tweaks included.
Floor plans
Floor plan drawing 1
Silverbell
Floor plan drawing 2
Silverbell

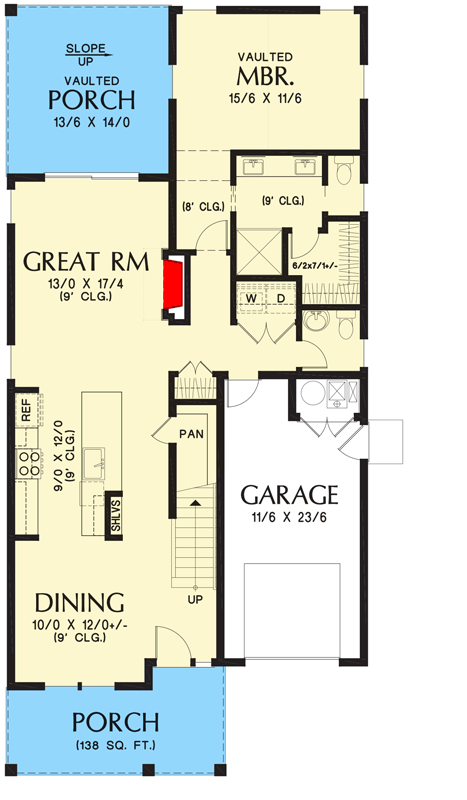

Floor plan drawing 3
Silverbell

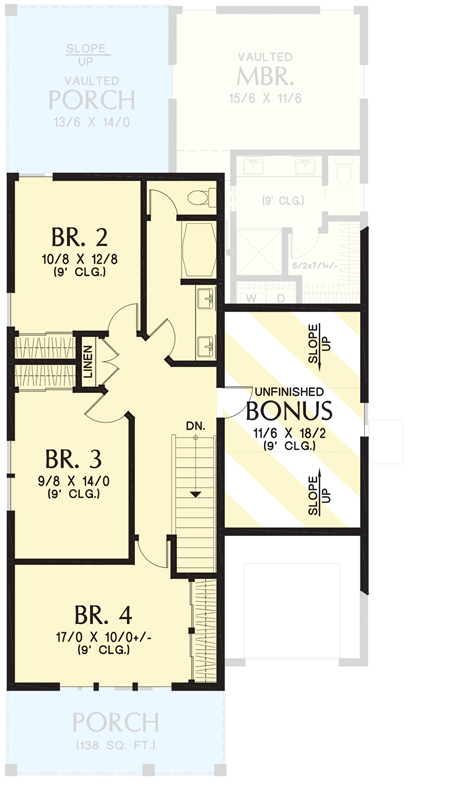

Floor plan drawing 4
Silverbell

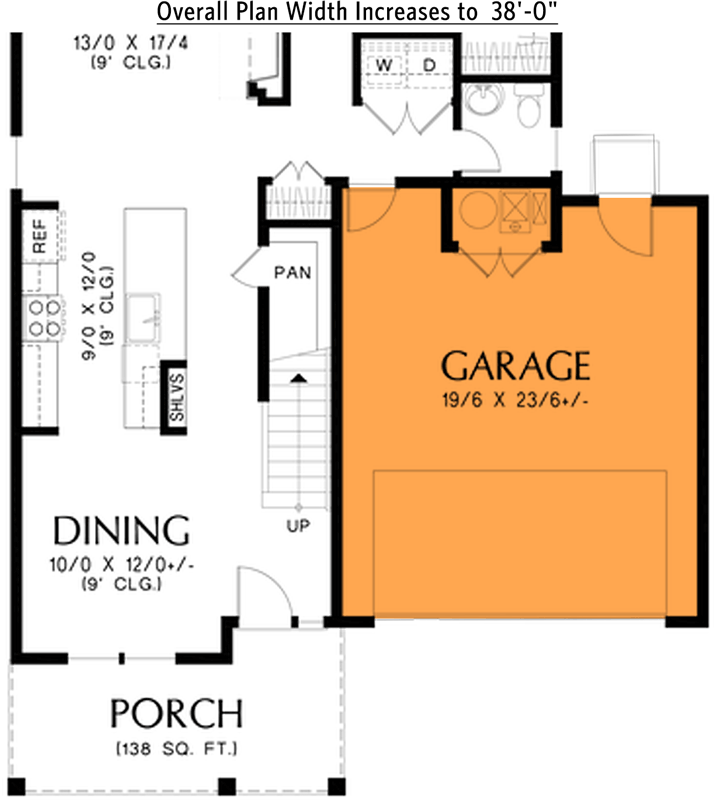

Floor plan drawing 5
Silverbell
Elevations

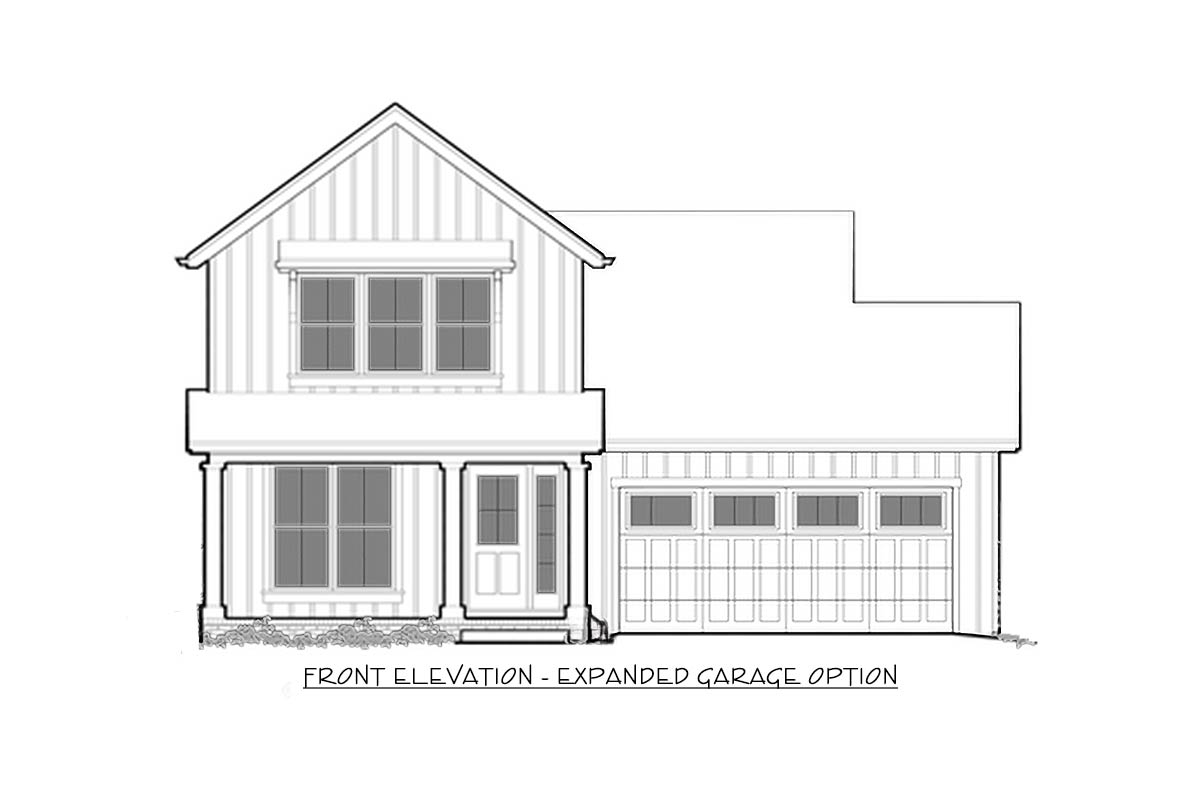

Elevation drawing 1
From the plan set
Elevation drawing 2
From the plan set

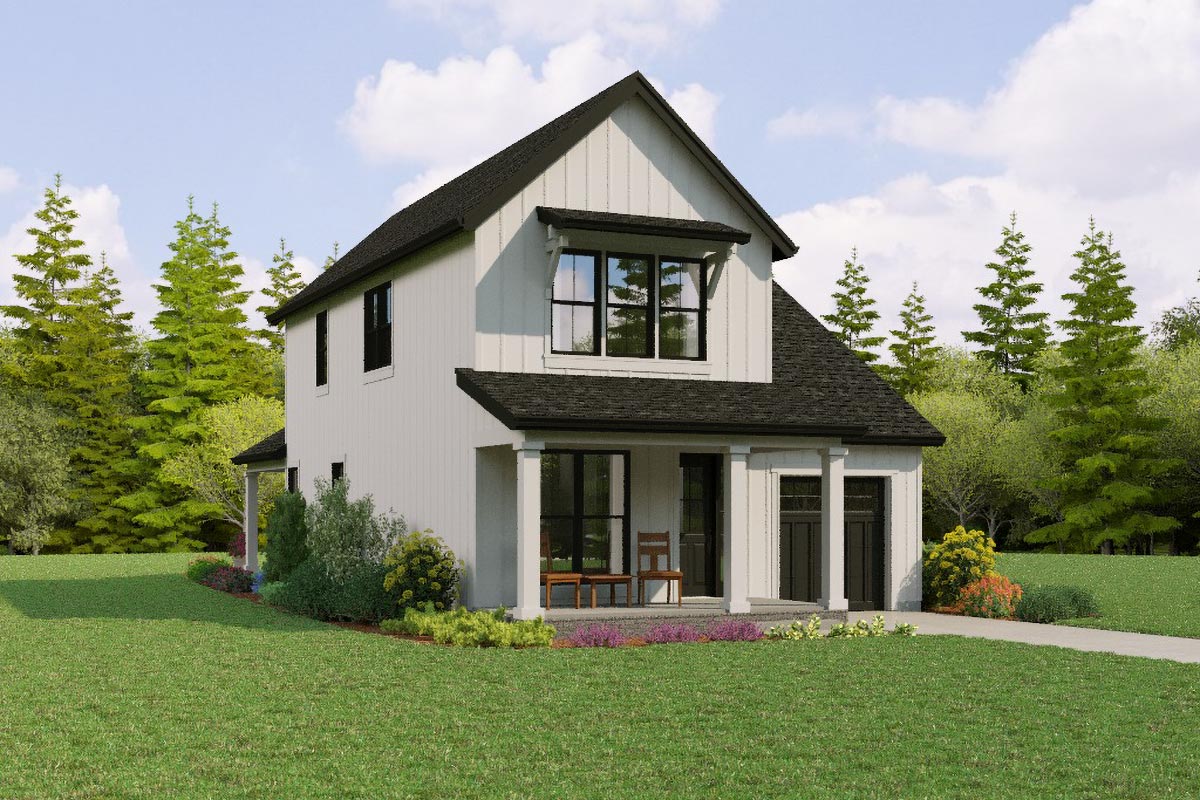

Elevation drawing 3
From the plan set

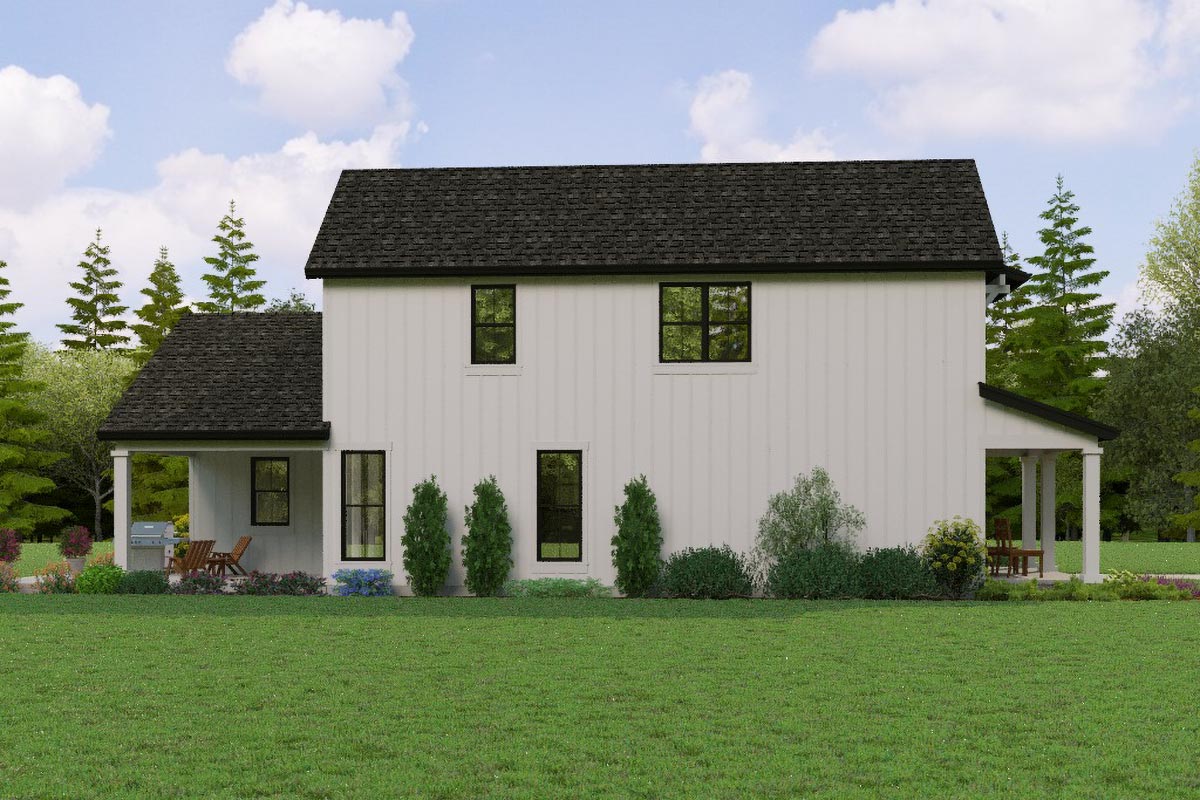

Elevation drawing 4
From the plan set

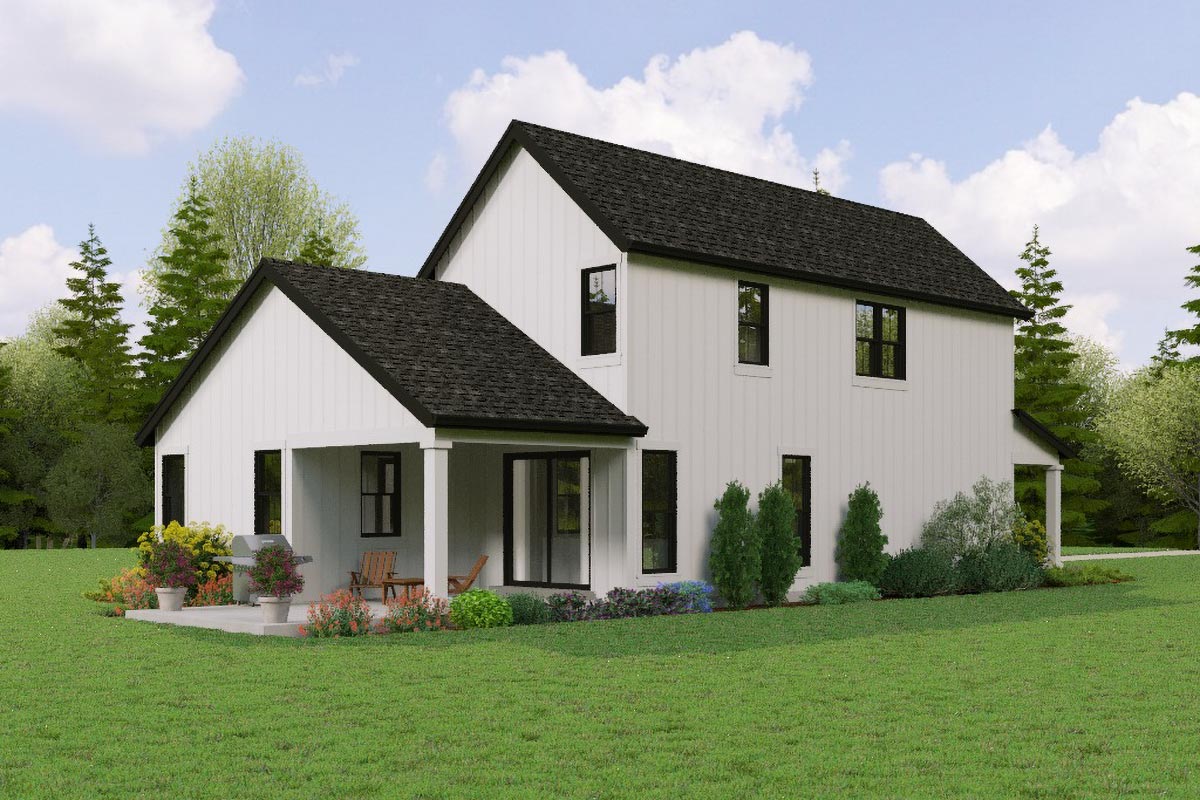

Elevation drawing 5
From the plan set

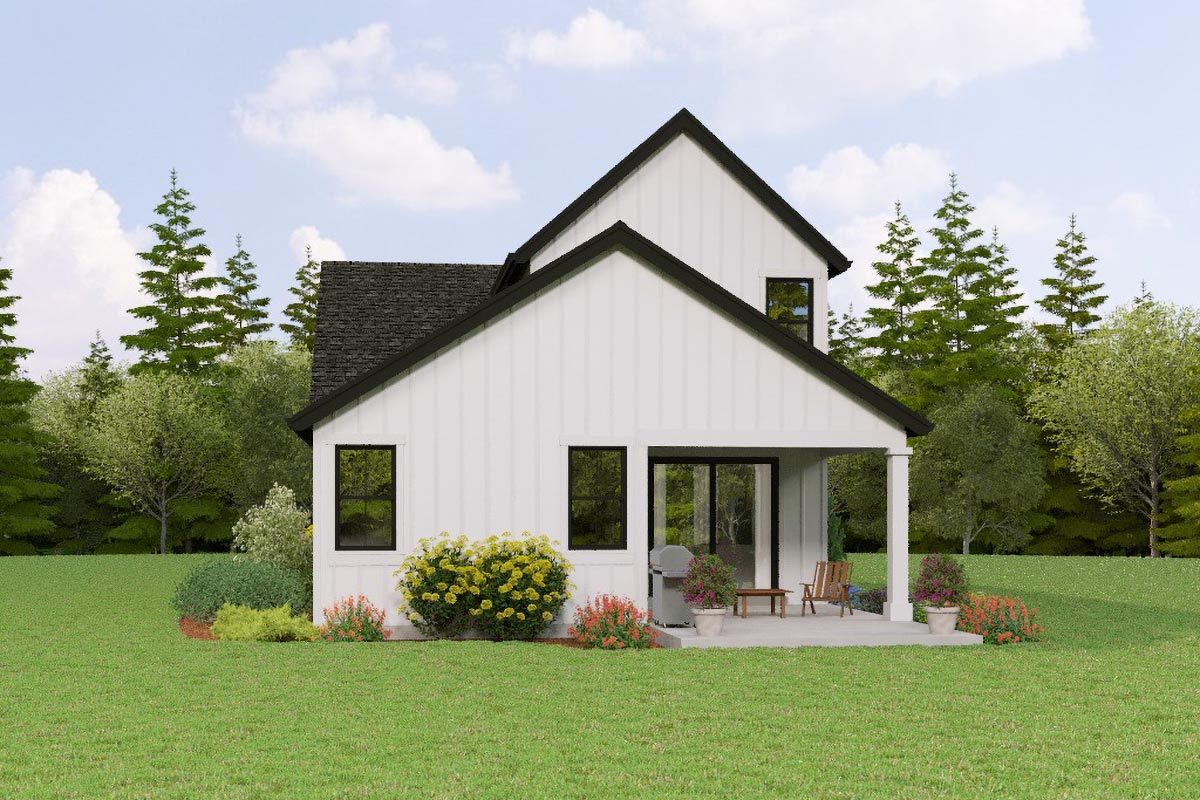

Elevation drawing 6
From the plan set

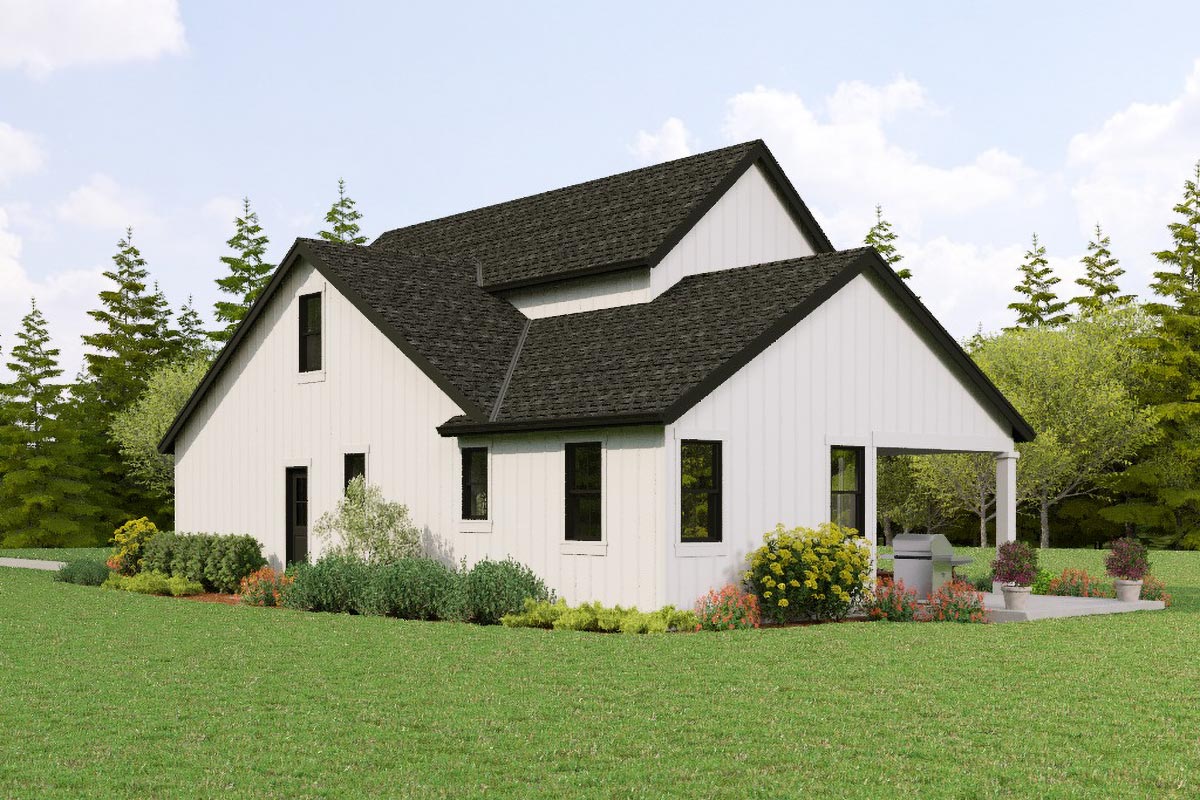

Elevation drawing 7
From the plan set

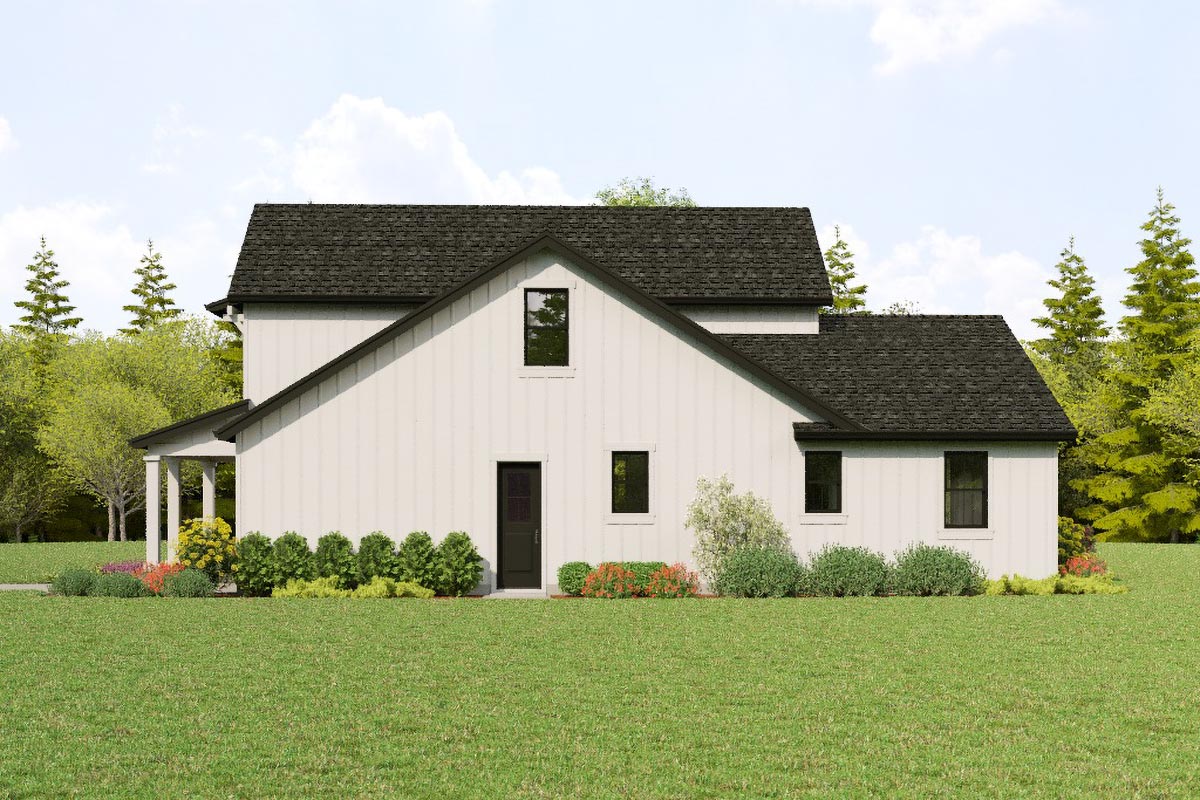

Elevation drawing 8
From the plan set

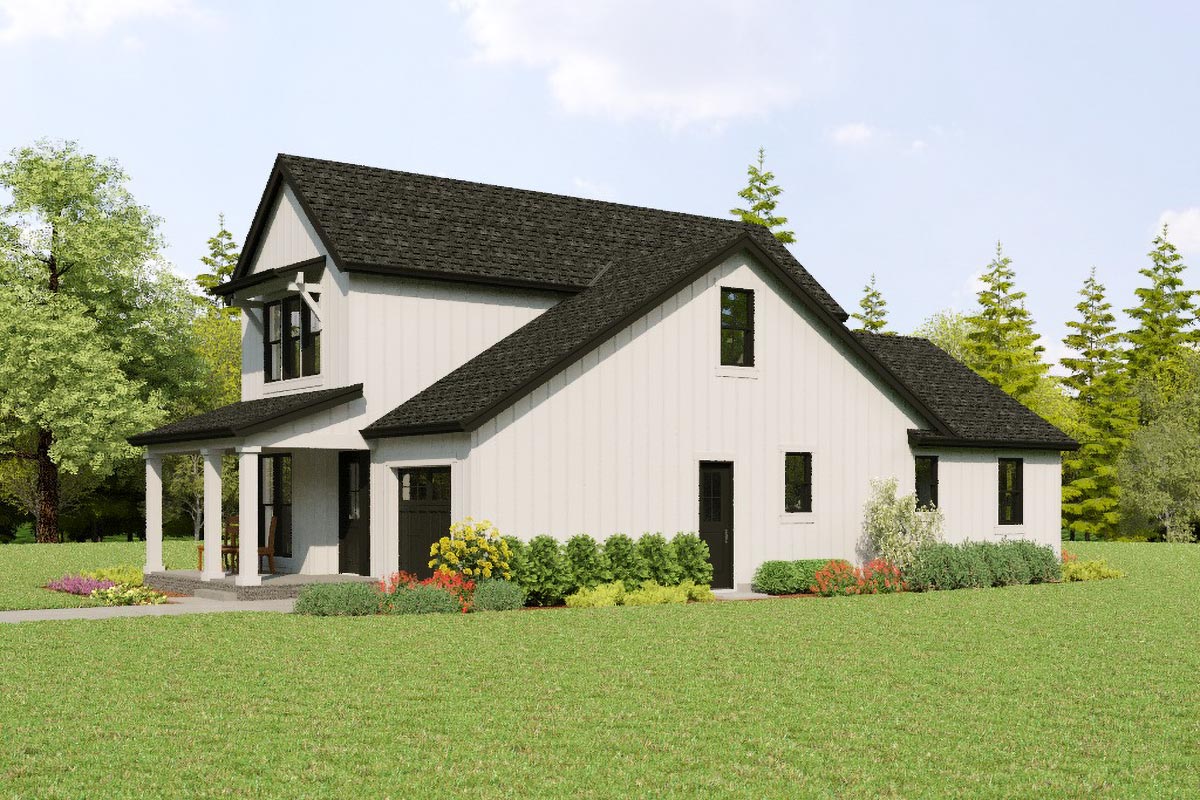

Elevation drawing 9
From the plan set

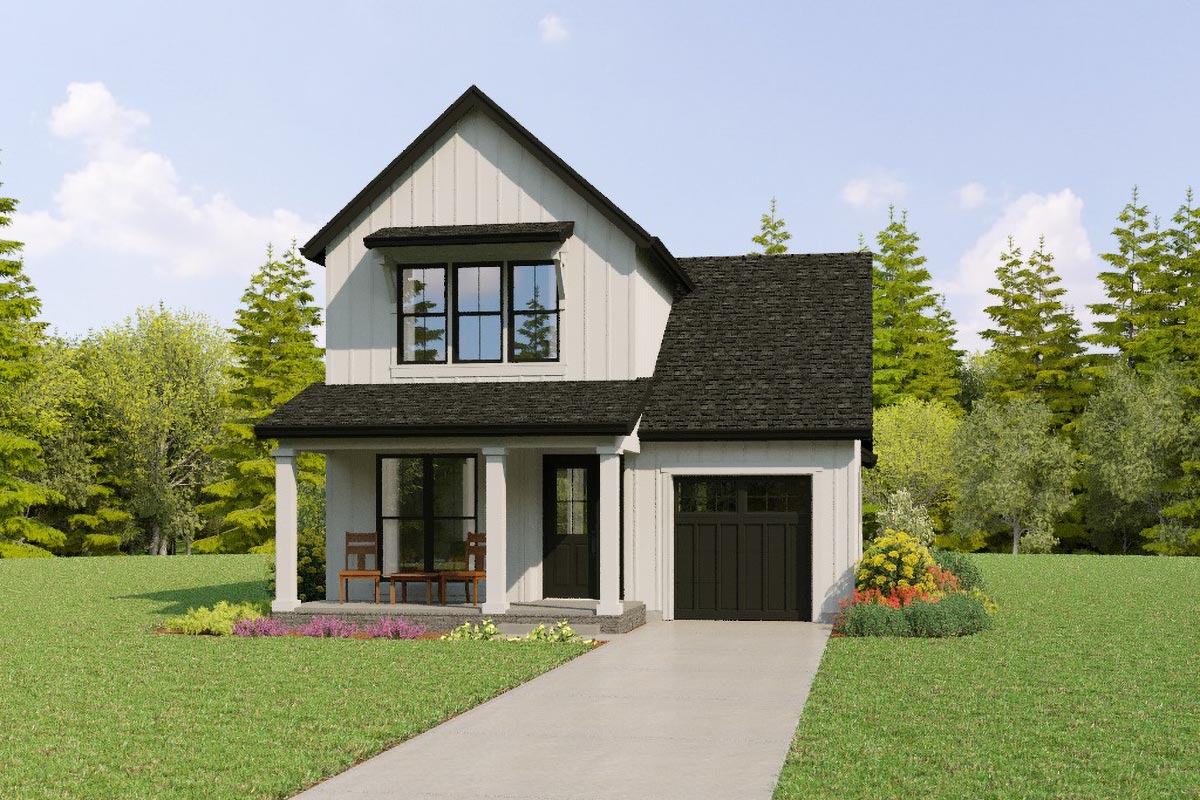

Elevation drawing 10
From the plan set

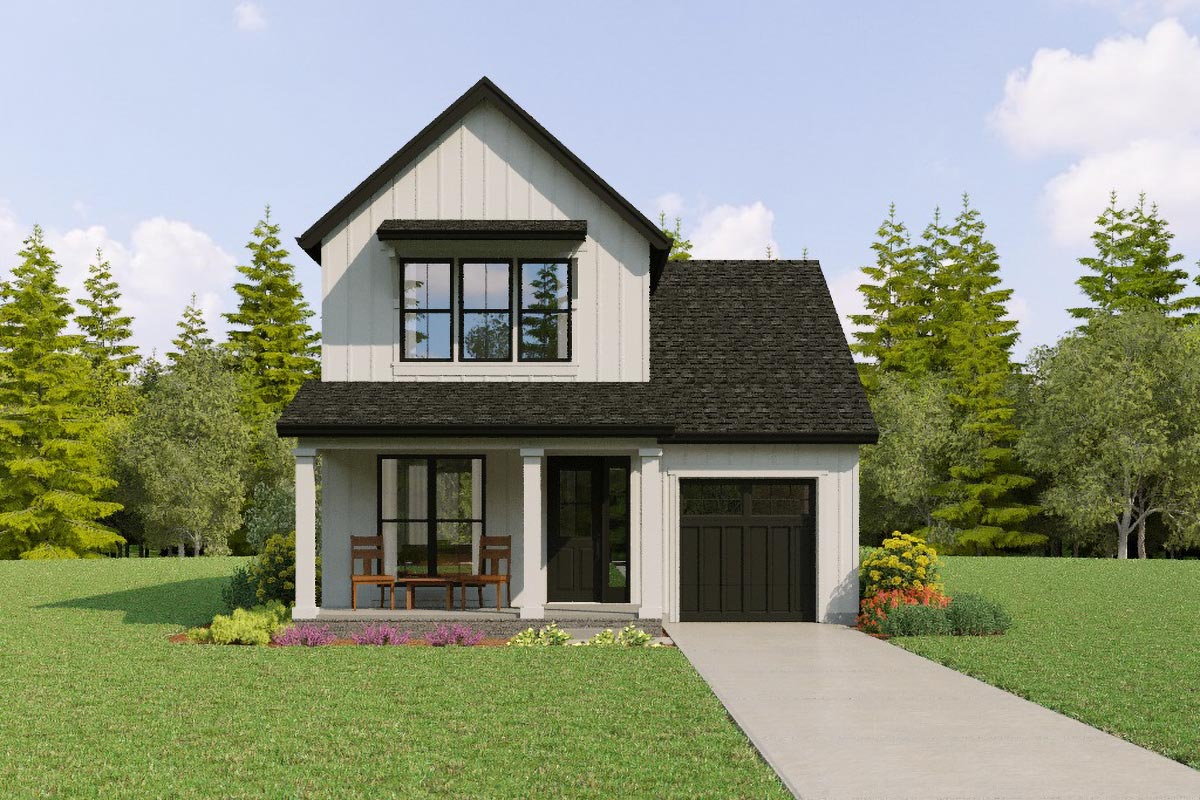

Elevation drawing 11
From the plan set
Dimensions
| Width | 30' 0" |
| Depth | 64' 0" |
| Max ridge height | 27' 8" |
Home specifications
| Category | Sq ft |
|---|---|
| Heated & cooled | 1,926 |
| Garage | 288 |
| Total gross sq ft | 2,214 |
