The "Wolcott"
PlanEuropean

The "Wolcott"

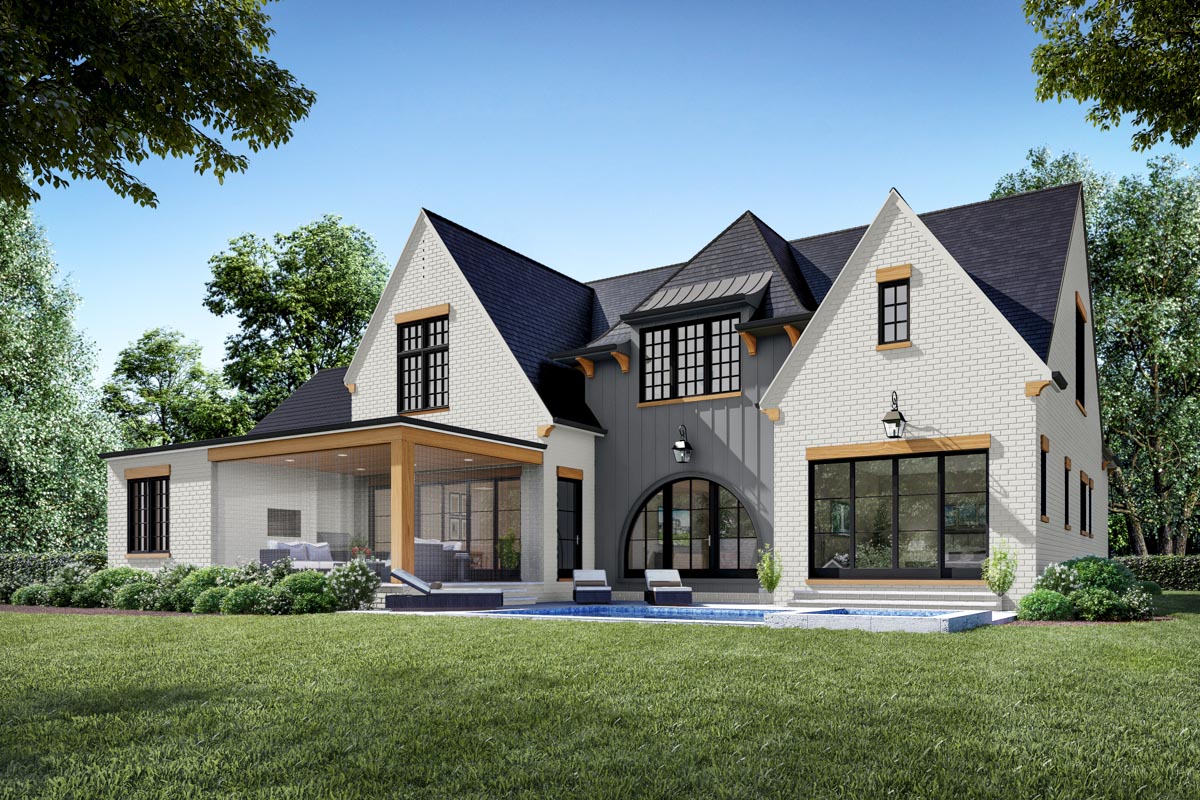

exterior_rendering
exterior_rendering
Overview
5
Bedrooms
5.5
Bathrooms
4,073
Heated sq. ft.
3-car
Garage
2
Stories

5 bedrooms, 5 full + 1 half bath, 3-car garage.

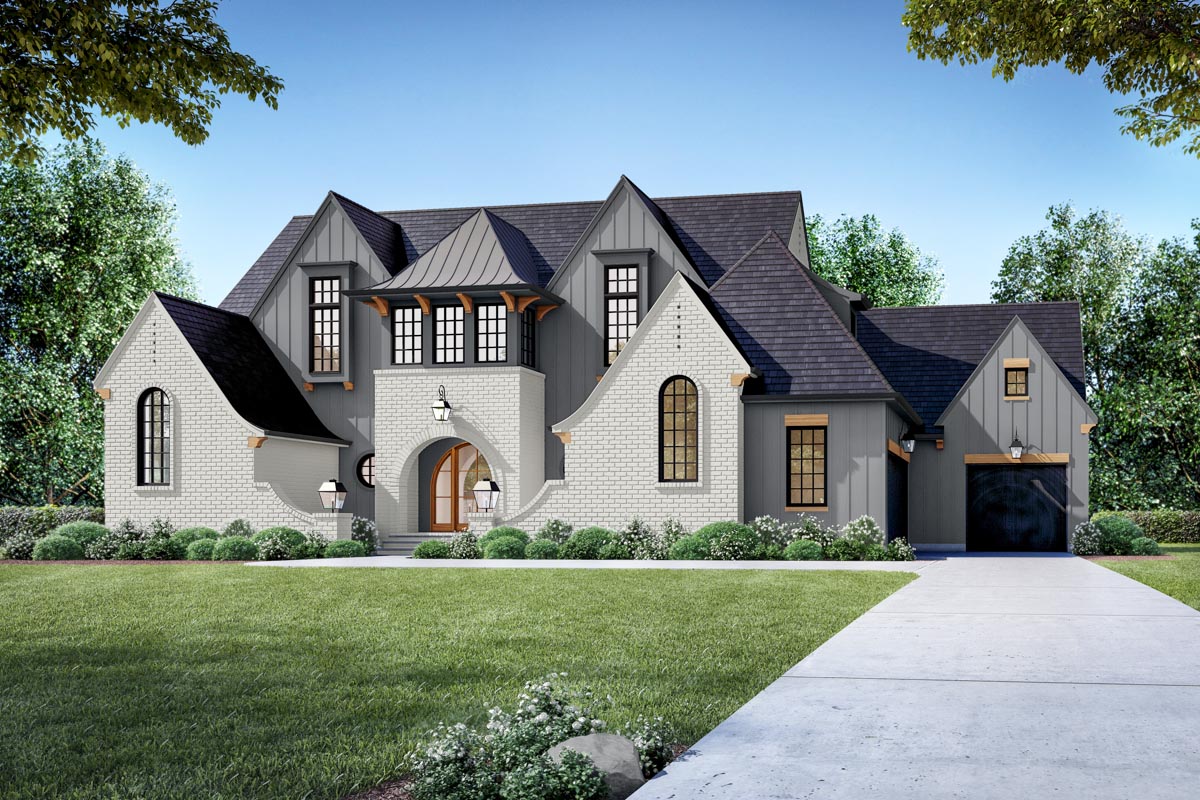

Primary bedroom: main floor. Exterior as rendered: light gray exterior: white or painted brick, board and batten, metal roofing, natural wood accents, black windows. Any plan can be built with the materials you choose.

About this home

At 4,073 heated square feet, this two-story European plan balances open shared rooms with quiet, private zones for rest and work. The plan includes 5 bedrooms and 5 full baths and 1 half bath, plus a 3-car attached garage with front, side entry. The footprint measures roughly 81' 0" wide by 69' 0" deep, with 10' ceilings on the main level.

Inside, the layout supports both daily routines and relaxed entertaining. Outdoor living extends the home with a 58 sq. ft. front porch and a 369 sq. ft. rear porch. Construction specs call for a crawl foundation and 2x6 exterior walls. As with every HRP plan, this one can be tailored to your specific lot and personal selections across finishes, fixtures, and floor-plan adjustments.

Floor plans

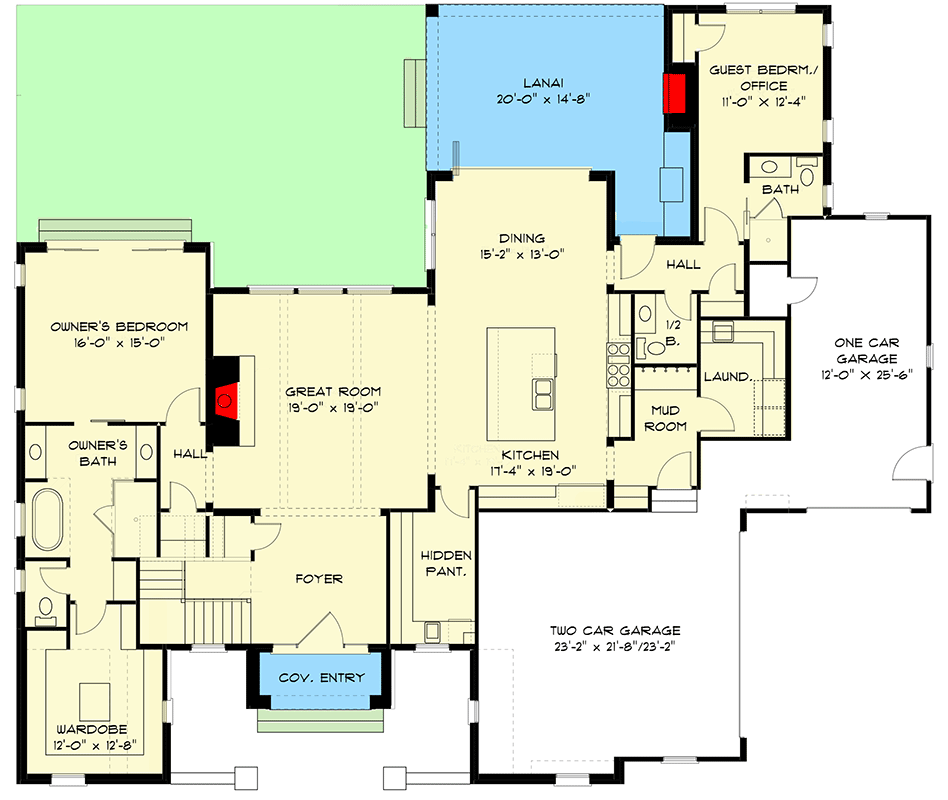

Floor plan drawing 1
Floor plan drawing 1
Wolcott

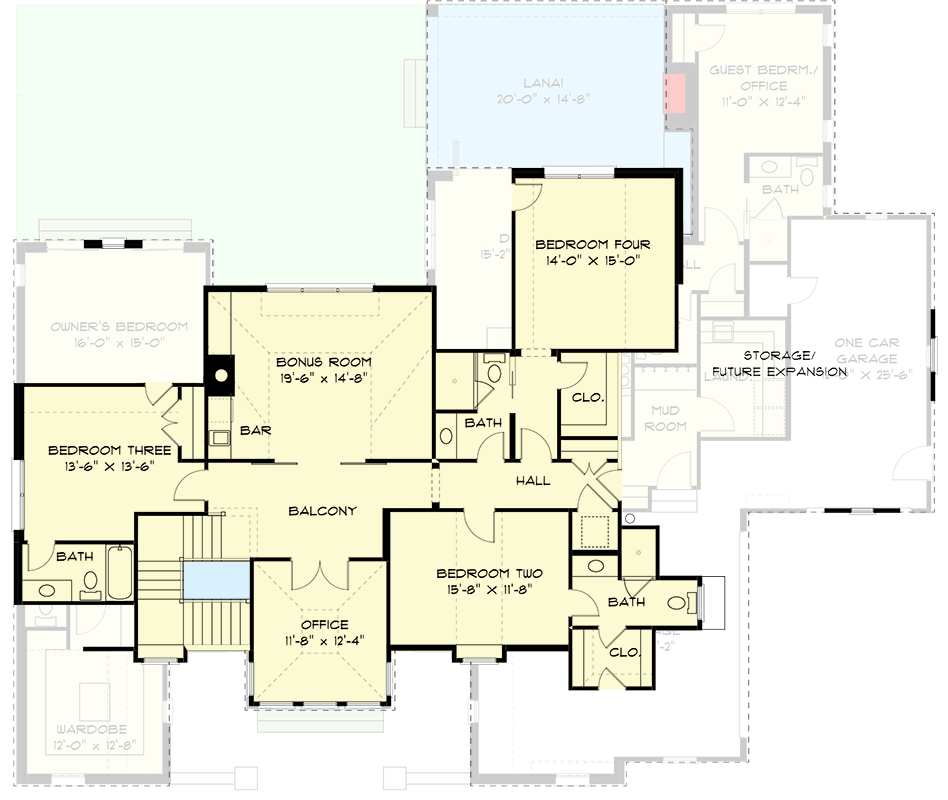

Floor plan drawing 2
Floor plan drawing 2
Wolcott

Elevations

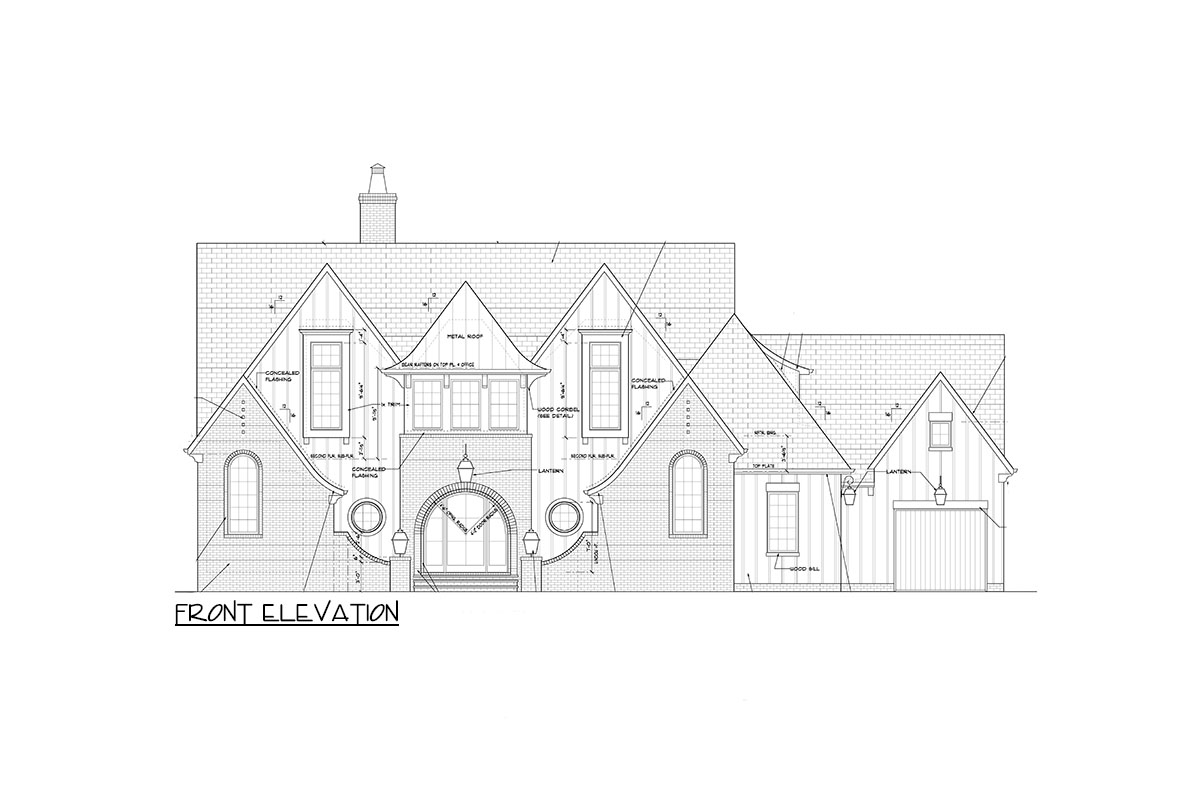

The "Wolcott" elevation drawing 1
Elevation drawing 1
From the plan set

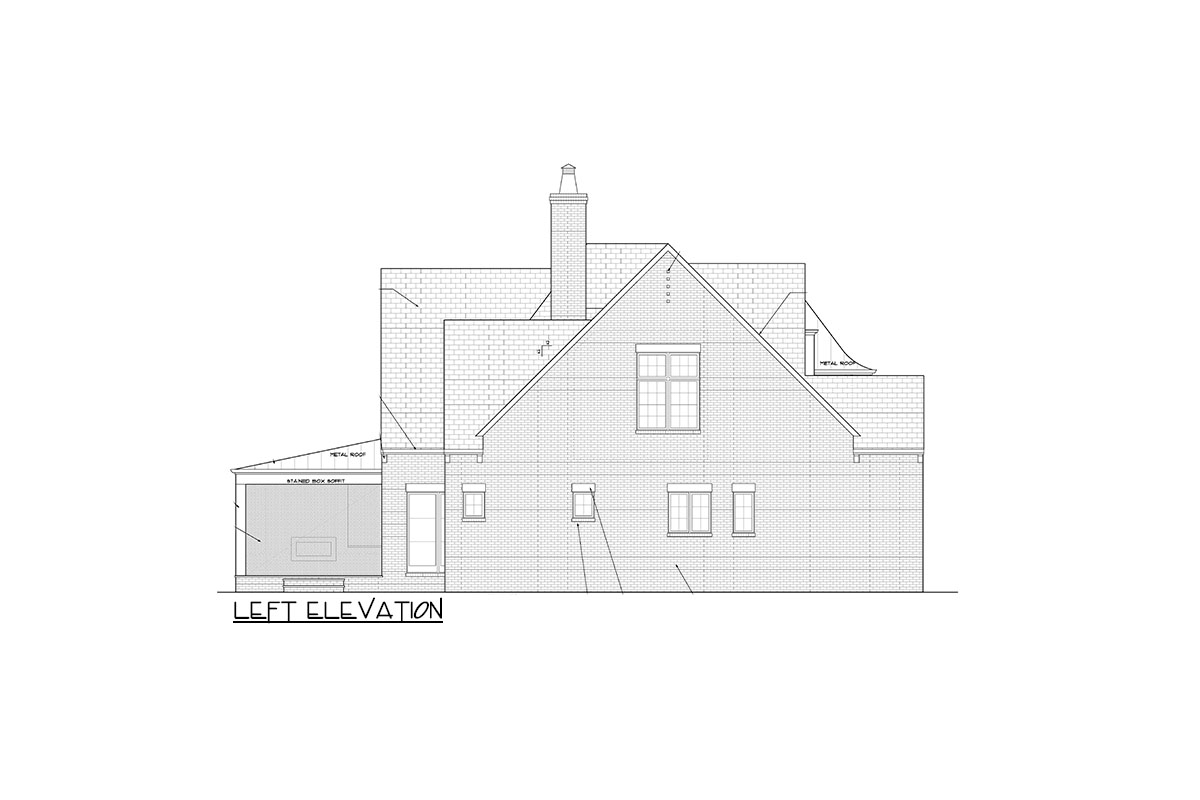

The "Wolcott" elevation drawing 2
Elevation drawing 2
From the plan set

Dimensions

Width81' 0"
Depth69' 0"
Max ridge height33' 0"
First-floor ceiling10'
Second-floor ceiling9'

Home specifications

CategorySq ft
Heated & cooled4,073
Garage972
Front porch58
Rear porch369
Total gross sq ft5,472

Build This House

Estimated build price
$1,116,000
Land and site work additional
Plan-specific estimate
